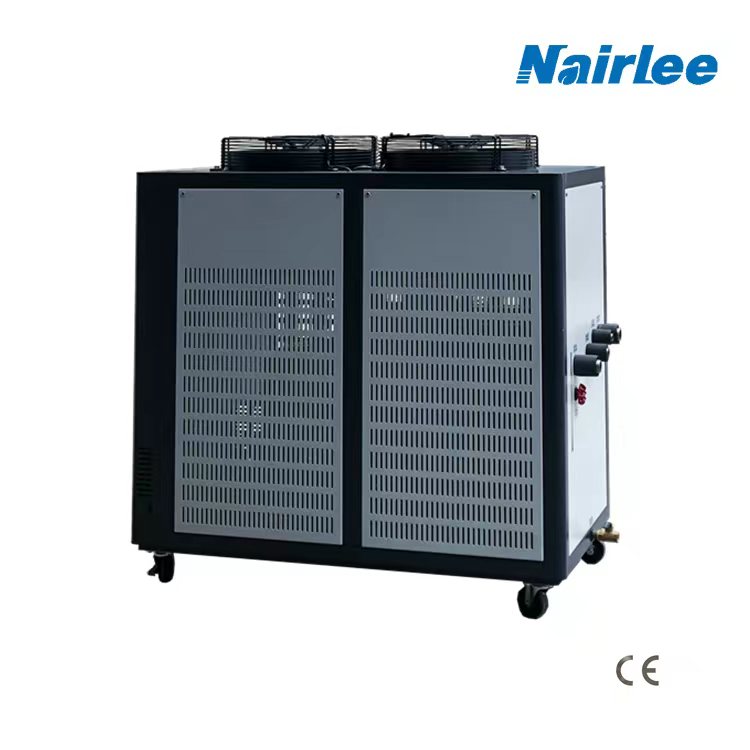

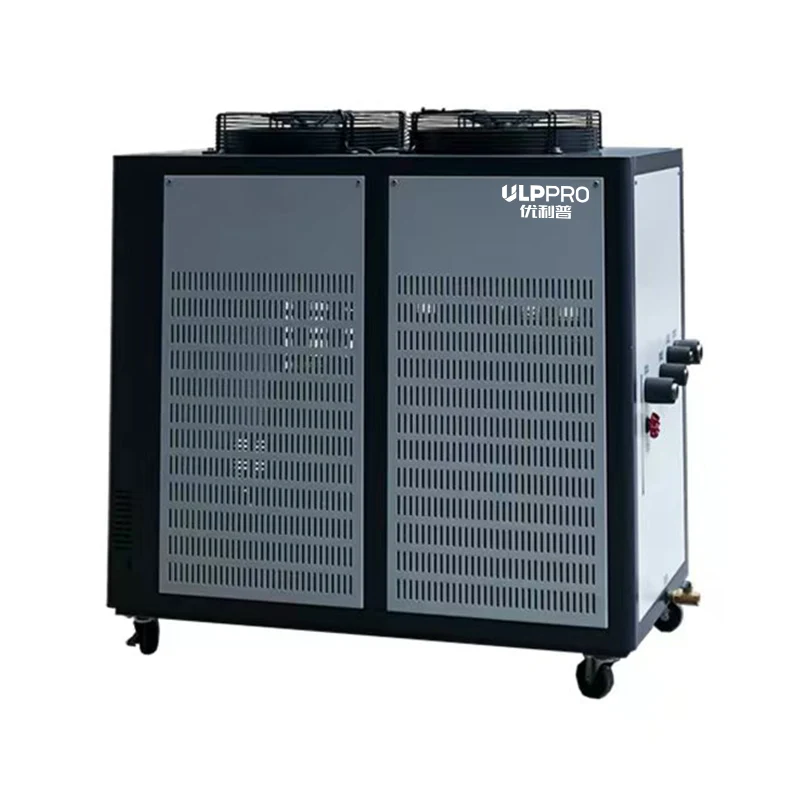

Water-cooled Packaged Scroll Chiller

The Water-cooled Packaged Scroll Chiller supplied by Yuzhen from China is of reliable quality, with comprehensive after-sales service and an excellent marketing system. These are the reasons for choosing this type of chiller.

Send Inquiry

Product Description

Yuzhen Factory's Water-cooled Packaged Scroll Chiller, including the factory's cooperative research and development advantages, the product's core advantages such as high-quality components and efficient heat exchange, detailed technical parameters of various models, and the product's working conditions and parameter modification disclaimer. The chiller is equipped with imported compressors and intelligent control systems, featuring high efficiency, low noise, and stable performance, with a complete model range to meet diverse application needs.

Yuzhen Factory is equipped with advanced production technology and industrial system standards, and has successively cooperated with Hanbell, Bitzer, Shanghai Chemical Design and Research Institute, Chinese Institute of Chemical Technology, Siemens, Panasonic, Schneider, Shanghai Jiao Tong University, Tianjin Polytechnic University and other institutions have established long-term and stable cooperation in scientific research and design.

What are the advantages of Yuzhen's Water-cooled Packaged Scroll Chiller?

The water-cooled packaged scroll chiller offers superior performance. Imported brand compressors have excellent quality and can provide long-lasting and powerful performance. The LCD screen controller can display intelligently, making all data clear at a glance. The double-threaded inner thread copper tube results in a 35% increase in efficiency. High-performance, high-efficiency and low-noise fans, suitable for various complex environments; The high-efficiency heat exchange shell and tube enhances the process stability and reduces the failure rate by 30%. The stainless steel heat exchanger and pipelines have significantly enhanced the heat exchange efficiency and reduced the leakage rate to the minimum.

Technical parameters

Item / Model		HZ-03W	HZ-05W	HZ-06W	HZ-08W	HZ-10W	HZ-12W	HZ-15W
Standard Cooling Capacity	KW	11.2	18.2	21.4	27.8	37.1	41.7	55.7
Standard Cooling Capacity	Kcal/h	9632	15652	18404	23908	31906	35862	47902
Total Input Power	KW	2.97	5.05	5.95	7.55	9.35	10.7	14.8
Power Supply		3PH 380V 50HZ (200V/22V/415V 50HZ/60HZ)
Refrigerant	Name	R22 (R410a/407c)
Refrigerant	Control Method	Capillary /expansion valve					External balanced thermal expansion valve
Compressor	Type	Hermetic rotary / Scroll (Piston) type
Compressor	Power (KW)	2.6	4.3	5.2	6.8	8.6	9.2	13.3
Condenser	Type	Shell and tube / Plate heat exchanger
	Cooling Water Flow (m³/h)	2.1	3.5	3.6	5.2	6.76	7.9	10.7
	Pipe Diameter	1½"	1½"	1½"	1½"	1½"	1½"	2"
Evaporator	Type	Stainless steel plate heat exchanger + water tank coil (stainless steel shell and tube type)
	Chilling Water Flow (m³/h)	1.63	2.63	3	4.1	5.26	5.89	8.35
	Tank Capacity (L)	60	60	130	160	200	200	300
	Pipe Diameter	1"	1"	1"	1½"	1½"	2"	2"
Water Pump	Power (KW)	0.37	0.75	0.75	0.75	0.75	1.5	1.5
Water Pump	Head (m)	20	20	20	22	20	20	20
Safety Protection		Compressor overheat protection, overcurrent protection, high/low pressure protection, overtemperature protection, flow protection, phase sequence/loss protection, discharge overheat protection
Dimensions	Length (mm)	900	900	1200	1200	1200	1530	1700
	Width (mm)	560	560	650	650	650	780	810
	Height (mm)	960	1000	1000	1350	1350	1350	1620
Weight	KG	130	150	165	300	430	500	735

Item / Model		HZ-20W	HZ-25W	HZ-30W	HZ-40W	HZ-50W	HZ-60W	HZ-80W
Standard Cooling Capacity	KW	72.9	83.4	111.5	141.4	178.2	214.2	282
Standard Cooling Capacity	Kcal/h	62694	71724	95890	121604	153252	184212	243208
Total Input Power	KW	20.2	22.4	30.95	39.75	44.4	56	77.5
Power Supply		3PH 380V 50HZ (200V/22V/415V 50HZ/60HZ)
Refrigerant	Name	R22 (R410a/407c)
Refrigerant	Control Method	External balanced thermal expansion valve
Compressor	Type	Hermetic rotary / Scroll (Piston) type
Compressor	Power (KW)	18	20.2	27.2	36	40.4	50.5	72
Condenser	Type	Shell and tube / Plate heat exchanger
	Cooling Water Flow (m³/h)	13.9	15.8	20.5	26.7	33	40.9	53
	Pipe Diameter	2"	2 1/2"	3"	3"	3"	4"	4"
Evaporator	Type	Stainless steel plate heat exchanger + water tank coil (stainless steel shell and tube type)
	Chilling Water Flow (m³/h)	10.3	11.76	16.7	20.92	26.3	31.6	42
	Tank Capacity (L)	350	380	450	450	500	550	700
	Pipe Diameter	2"	2-1/2"	2-1/2"	3"	3"	3"	4"
Water Pump	Power (KW)	2.2	2.2	3.75	3.75	4	5.5	5.5
Water Pump	Head (m)	20	20	22	22	23	23	30
Safety Protection		Compressor overheat protection, overcurrent protection, high/low pressure protection, overtemperature protection, flow protection, phase sequence/loss protection, discharge overheat protection
Dimensions	Length (mm)	1700	1850	2000	2100	2300	2400	3400
	Width (mm)	810	850	920	1050	1050	1200	1050
	Height (mm)	1620	1620	1950	1950	1950	1950	1950
Weight	KG	820	900	1150	1200	1380	1450	1750

The cooling capacity is based on the following conditions: the inlet and outlet temperatures of chilled water being 17°C/12°C, and the inlet and outlet temperatures of cooling water being 25°C/35°C.

Scope of work: Freezing water temperature range: 7℃ to 35℃; Temperature difference between inlet and outlet of freezing water: 3℃ to 8℃.

Cooling water temperature range: 15℃ to 30℃; Temperature difference between inlet and outlet of cooling water: 3.5℃ to 10℃.

We reserve the right to modify the above parameters or dimensions without prior notice.
