Fixed Speed Screw Air Compressor

The Fixed Speed Screw Air Compressor features a robust structure, stable operation, and long service life. As a professional supplier with many years of experience, Yuzhen is dedicated to providing you with more high-quality products.

Send Inquiry

Product Description

Fixed Speed Screw Air Compressors, with their core advantages of high reliability, high stability, and easy maintenance, are widely used in industrial production, factory equipment, and energy systems.

Main Unit Introduction:

1. The screw compressor main unit of the Hanbell fixed speed screw air compressor is entirely independently researched and developed and manufactured, making it a major main unit supplier for domestic Chinese brand air compressor companies.

2. Hanbell main unit bearings use world-renowned brands, reducing noise and extending service life.

3. Low tip speed lead design improves volumetric efficiency.

4. High-load resistant design with advanced, specialized tooth profile.

5. Stable operation, robust construction, and long service life.

6. The rotor is manufactured using German processing equipment to ensure dimensional accuracy of parts.

Advanced processing technology and automated production equipment ensure stable product quality. The overall modular design features a simple structure, rational layout, and comprehensive intelligent monitoring. Hanbell is committed to producing highly stable, high-quality compressed air, providing you with a solid guarantee.

1. Casting Equipment: Advanced casting equipment and autonomous casting system production meet diverse customer needs.

2. Machining Equipment: Advanced CNC rotor tooth grinding machines ensure Hanbell compressors lead the industry in manufacturing precision.

3. Measuring Equipment: Advanced 3D measuring machines ensure excellent tooth profile matching to meet rotor design requirements.

4. Testing Equipment: An automated main unit testing system ensures each main unit undergoes rigorous performance testing to meet customers' high-quality requirements.

5. Warehousing Equipment: Advanced AS/RS automated warehousing systems, LGV and RGV automated feeding systems, and Hanbell Precision Machinery's flexible production system ensure efficient and fast delivery to customers.

Technical Specifications of Hanbell AE6 Series Fixed speed Screw Air Compressor Belt Drive Unit

Model	Motor Power (kW)	Discharge Pressure (bar)	Volume Flow (m³/min)	Outlet Size (Inch)	Unit Net Weight (kg)	Overall Dimensions (LWH) mm
AE6-06A	5.5	8	0.7	Rp1/2	240	800700930
	5.5	10	0.6	Rp1/2	240	800700930
	5.5	13	0.4	Rp1/2	240	800700930
AE6-08A	7.5	8	1.1	Rp1/2	240	800700930
	7.5	10	1	Rp1/2	240	800700930
	7.5	13	0.8	Rp1/2	240	800700930
AE6-11A	11	8	1.6	Rp3/4	450	10808501000
	11	10	1.4	Rp3/4	450	10808501000
	11	13	1.2	Rp3/4	450	10808501000
AE6-15A	15	8	2.4	Rp3/4	450	10808501000
	15	10	2.1	Rp3/4	450	10808501000
	15	13	1.7	Rp3/4	450	10808501000
AE6-18A	18.5	8	3	Rp1	520	10808501200
	18.5	10	2.7	Rp1	520	10808501200
	18.5	13	2.3	Rp1	520	10808501200
AE6-22A	22	8	3.6	Rp1	580	10808501200
	22	10	3.2	Rp1	580	10808501200
	22	13	2.6	Rp1	580	10808501200
AE6-30A	30	8	5	Rp1	630	10808501200
	30	10	4.3	Rp1	630	10808501200
	30	13	3.7	Rp1	630	10808501200
AE6-37A	37	8	6.1	Rp1-1/2	680	120010001500
	37	10	5.4	Rp1-1/2	680	120010001500
	37	13	4.5	Rp1-1/2	680	120010001500
AE6-45A	45	8	7.6	Rp1-1/2	720	120010001500
	45	10	6.4	Rp1-1/2	720	120010001500
	45	13	5.5	Rp1-1/2	720	120010001500

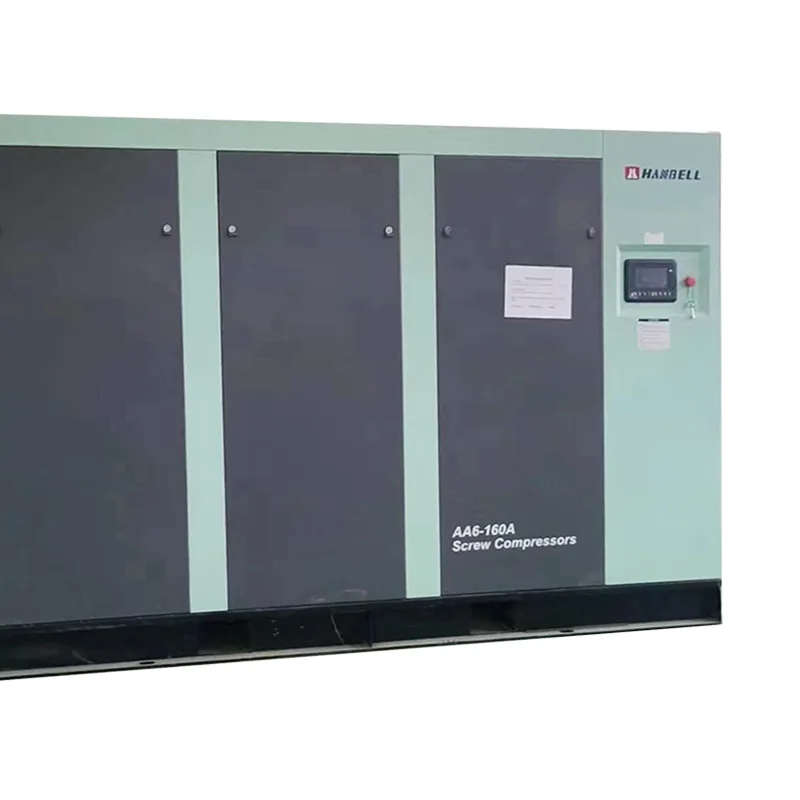

Technical Specifications of Hanbell AA6 Series Direct-Drive Fixed speed Screw Air Compressor

Model	Motor Power (kW)	Discharge Pressure (bar)	Volume Flow Rate (m³/min)	Outlet Size (Inch)	Unit Net Weight (kg)	Overall Dimensions (LWH) mm
AA6-22A	22	8	3.7	Rp1	620	13808501160
AA6-22A	22	10	3.0	Rp1	620	13808501160
AA6-22A	22	13	2.9	Rp1	620	13808501160
AA6-37A	37	8	6.8	Rp1-1/2	860	150010001330
AA6-37A	37	10	4.7	Rp1-1/2	860	150010001330
AA6-37A	37	13	4.6	Rp1-1/2	860	150010001330
AA6-45A	45	8	8.0	Rp1-1/2	1420	150010001330
AA6-45A	45	10	6.5	Rp1-1/2	1420	150010001330
AA6-45A	45	13	5.5	Rp1-1/2	1420	150010001330
AA6-55A	55	8	9.8	DN50	1450	190015001600
AA6-55A	55	10	7.7	DN50	1450	190015001600
AA6-55A	55	13	6.5	DN50	1450	190015001600
AA6-75A	75	8	13.1	DN50	2040	250016001700
AA6-75A	75	10	9.5	DN50	2040	250016001700
AA6-75A	75	13	9.0	DN50	2040	250016001700
AA6-90A	90	8	16.8	DN65	2050	250016001700
AA6-90A	90	10	12.6	DN65	2050	250016001700
AA6-90A	90	13	11.6	DN65	2050	250016001700
AA6-110A	110	8	20.0	DN80	3070	260018501800
AA6-110A	110	10	15.1	DN80	3070	260018501800
AA6-110A	110	13	12.1	DN80	3070	260018501800
AA6-132A	132	8	23.2	DN80	3050	260018501800
AA6-132A	132	10	19.0	DN80	3050	260018501800
AA6-132A	132	13	15.4	DN80	3050	260018501800
AA6-160A	160	8	28.2	DN100	3990	328018802120
AA6-160A	160	10	22.3	DN100	3990	328018802120
AA6-160A	160	13	19.1	DN100	3990	328018802120
AA6-185A	185	8	32.3	DN100	4200	328018802120
AA6-185A	185	10	26.5	DN100	4200	328018802120
AA6-185A	185	13	21.8	DN100	4200	328018802120
AA6-200A	200	8	35.6	DN100	4480	305020002000
AA6-200A	200	10	31.3	DN100	4480	305020002000
AA6-200A	200	13	24.5	DN100	4480	305020002000
AA6-220A	220	8	38.4	DN100	6000	345020002150
AA6-220A	220	10	33.5	DN100	6000	345020002150
AA6-220A	220	13	28.2	DN100	6000	345020002150
AA6-250A	250	8	42.6	DN125	6010	350021002150
AA6-250A	250	10	38.0	DN125	6010	350021002150
AA6-250A	250	13	33.3	DN125	6010	350021002150
AA6-280A	280	8	47.0	DN125	6700	350021002150
AA6-280A	280	10	42.6	DN125	6700	350021002150
AA6-280A	280	13	37.8	DN125	6700	350021002150
AA6-315A	315	8	52.3	DN125	7000	350021002150
AA6-315A	315	10	46.3	DN125	7000	350021002150
AA6-315A	315	13	42.4	DN125	7000	350021002150
AA6-355A	355	8	65.0	DN125	8000	450021502250
AA6-355A	355	10	51.7	DN125	8000	450021502250
AA6-355A	355	13	46.1	DN125	8000	450021502250
