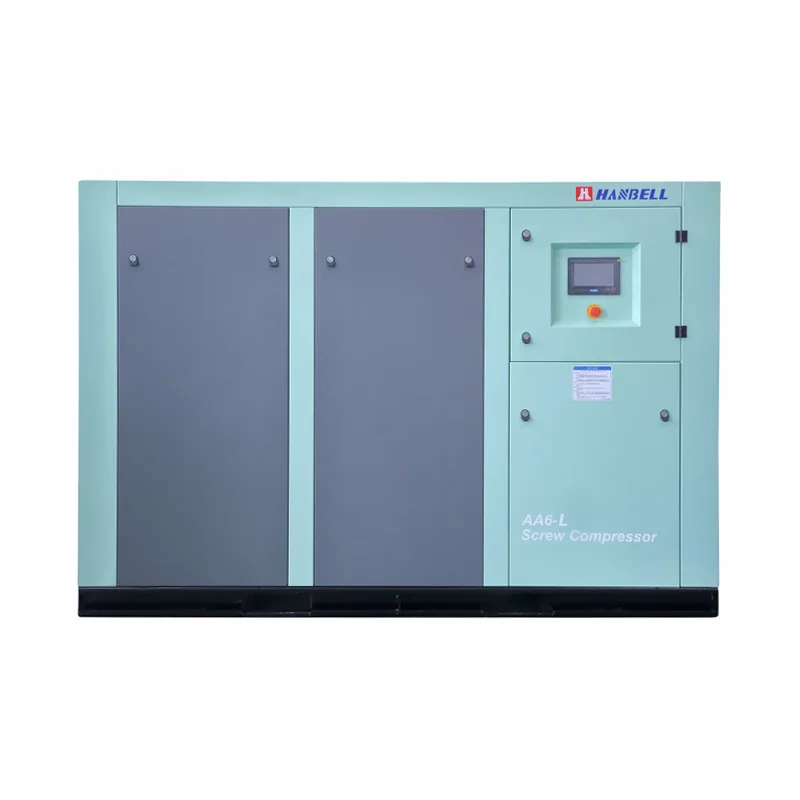

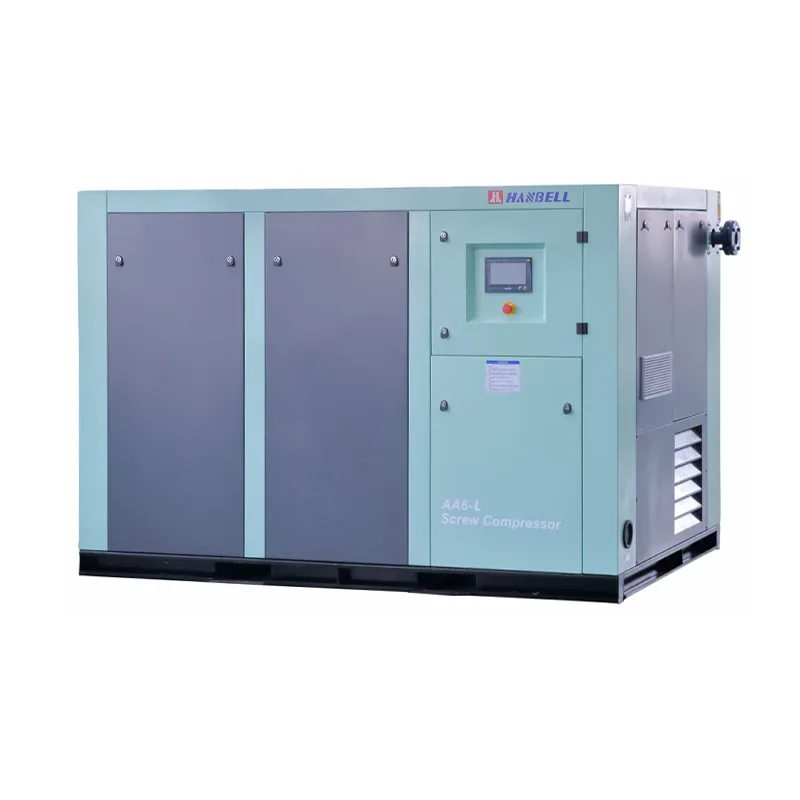

Low Pressure Variable Frequency Screw Air Compressor

The Quality Low Pressure Variable Frequency Screw Air Compressor from Yuzhen is a highly efficient, energy-saving solution tailored for industries requiring low-pressure compressed air systems. With a range of capacities and advanced features, this compressor ensures optimized performance for applications in the textile, cement, and glass industries.

Send Inquiry

Product Description

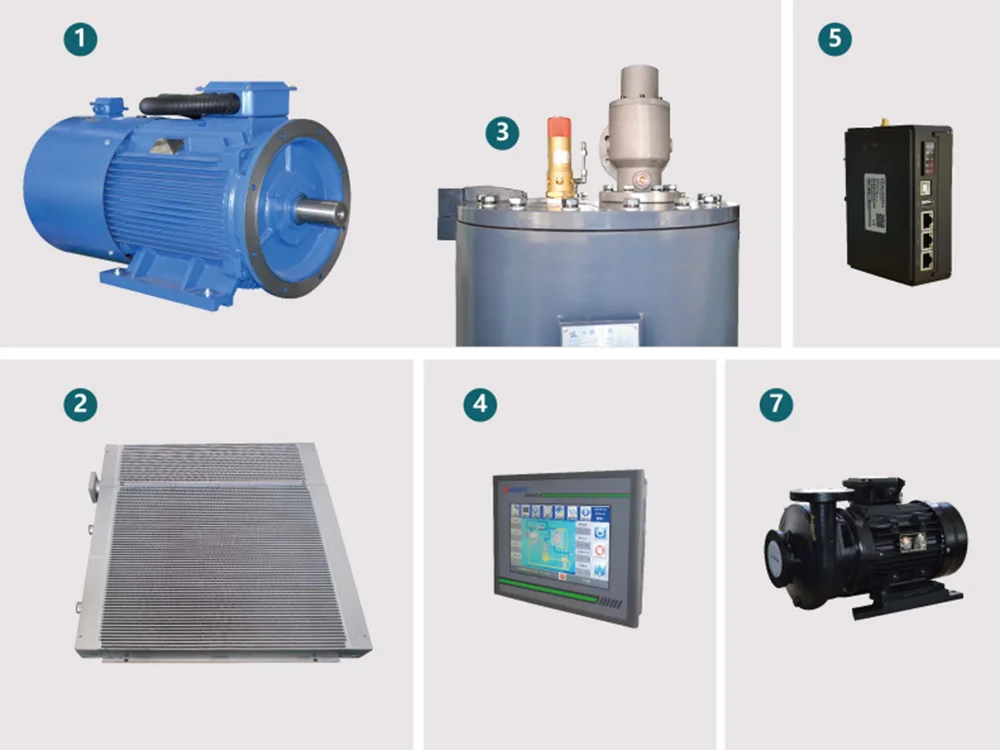

Product Features

1. Adopts a four-pole motor and large rotor body direct drive, ensuring more stable low-speed operation.

2. Oil cooler heat dissipation area increased by 30% or more, ensuring normal operation in high-temperature weather.

3. Enlarged oil-gas tank design ensures good oil-gas separation effect, with outlet oil content ≤2ppm.

4. Enables multi-unit interconnection system, allowing intelligent control based on user gas consumption. Standard DTC cloud system, easily monitor machine operation data via mobile phone.

5.Optimized internal piping, enlarged internal circulation oil-gas pipeline, reducing pressure loss and power consumption.

6.Independent oil pump design ensures oil pressure build-up during low-pressure operation, keeping the equipment in a stable operating state for a long time.

Energy-Saving Customized Applications for Low-Pressure Industries

Energy-Saving and High-Efficiency

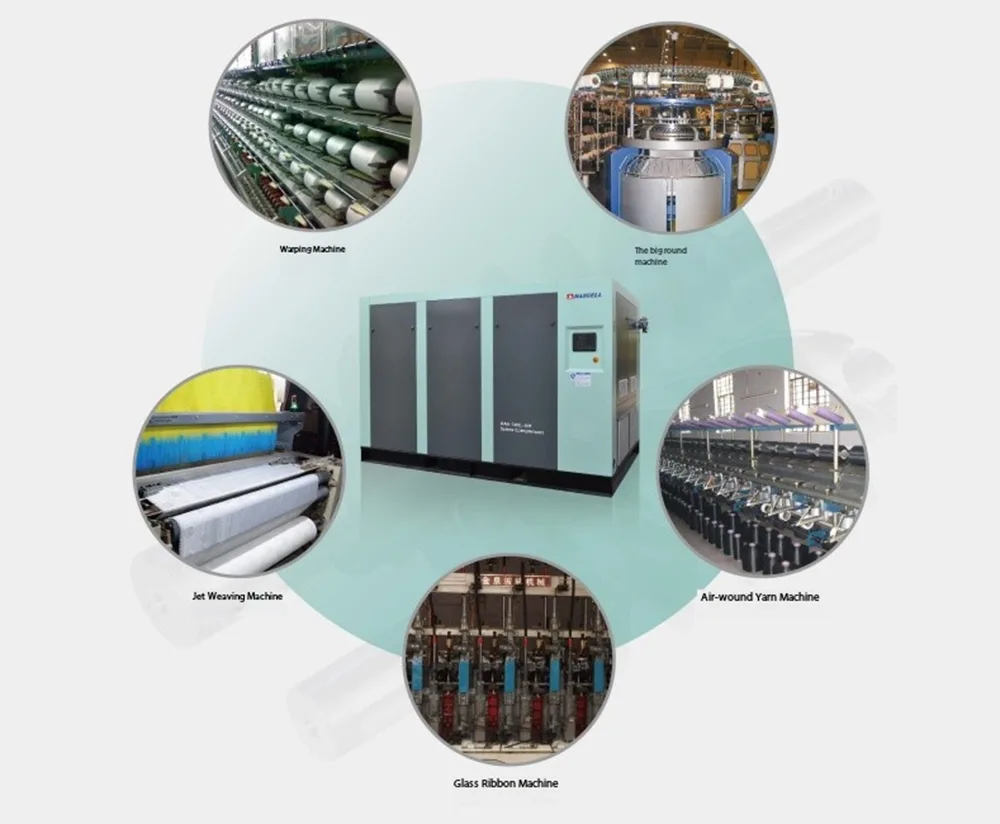

1. Low Pressure Variable Frequency Screw Air Compressor with exhaust pressures of 3-5 Bar, specifically designed for the textile, cement, and glass industries.

2. A machine body tailored for low-pressure operation, effectively improving volumetric efficiency.

Low-pressure variable frequency screw air compressor technical specifications

Model	Motor Power (kW)	Discharge Pressure (bar)	Volumetric Flow Rate (m³/min)	Outlet Size (inch)	Unit Net Weight (kg)	Overall Dimensions (LWH) mm
AA6-22L/-AM	22	3	6.7	DN50	1450	190015001600
AA6-22L/-AM	22	4	6.1	DN50	1450	190015001600
AA6-22L/-AM	22	5	6.0	DN50	1450	190015001600
AA6-37L/-AM	37	3	9.9	DN65	1650	190015001600
AA6-37L/-AM	37	4	8.3	DN65	1650	190015001600
AA6-37L/-AM	37	5	8.2	DN65	1650	190015001600
AA6-45L/-AM	45	3	13.1	DN65	1800	190015001600
AA6-45L/-AM	45	4	9.9	DN65	1800	190015001600
AA6-45L/-AM	45	5	9.9	DN65	1800	190015001600
AA6-55L/-AM	55	3	15.9	DN80	2800	298018502020
AA6-55L/-AM	55	4	15.5	DN80	2800	298018502020
AA6-55L/-AM	55	5	13.0	DN65	1900	250016001700
AA6-75L/-AM	75	3	20.3	DN80	3200	298018502020
AA6-75L/-AM	75	4	20.2	DN80	3200	298018502020
AA6-75L/-AM	75	5	15.3	DN80	3200	298018502020
AA6-90L/-AM	90	3	25.7	DN80	3600	298018502020
AA6-90L/-AM	90	4	23.1	DN80	3600	298018502020
AA6-90L/-AM	90	5	20.2	DN80	3600	298018502020
AA6-110L/-AM	110	3	32.3	DN100	3800	328018802120
AA6-110L/-AM	110	4	25.7	DN80	3700	298018502020
AA6-110L/-AM	110	5	23.0	DN80	3700	298018502020
AA6-132L/-AM	132	3	35.7	DN125	4500	345020002150
AA6-132L/-AM	132	4	32.2	DN100	4000	328018802120
AA6-132L/-AM	132	5	25.6	DN100	4000	328018802120
AA6-160L/-AM	160	3	42.6	DN125	4700	345020002150
AA6-160L/-AM	160	4	38.0	DN125	4700	345020002150
AA6-160L/-AM	160	5	35.5	DN125	4700	345020002150
AA6-185L/-AM	185	3	46.7	DN125	4900	345020002150
AA6-185L/-AM	185	4	42.4	DN125	4900	345020002150
AA6-185L/-AM	185	5	37.6	DN125	4900	345020002150
AA6-200L/-AM	200	3	52.7	DN125	7000	400021502250
AA6-200L/-AM	200	4	46.6	DN125	7000	400021502250
AA6-200L/-AM	200	5	42.2	DN125	7000	400021502250
AA6-220L/-AM	220	3	63.2	DN125	8000	450022802400
AA6-220L/-AM	220	4	52.6	DN125	7500	400021502250
AA6-220L/-AM	220	5	45.0	DN125	7500	400021502250
AA6-250L/-AM	250	3	66.2	DN125	9000	450022802400
AA6-250L/-AM	250	4	65.0	DN125	9000	450022802400
AA6-250L/-AM	250	5	52.5	DN125	7800	400021502280
