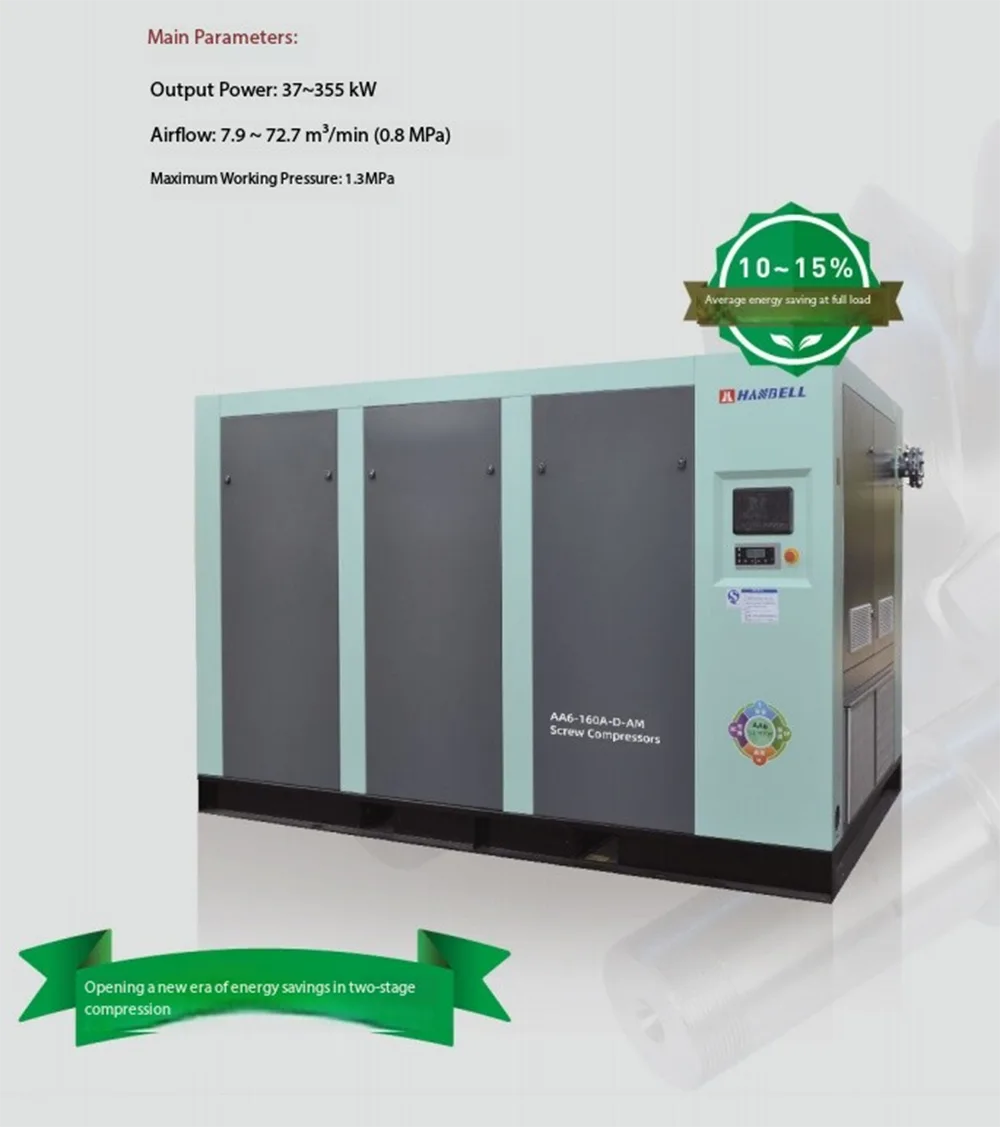

Two stage Compression Fixed Speed Screw Air Compressor

Yuzhen is committed to providing global industrial users with high-performance Two stage Compression Fixed Speed Screw Air Compressor. Leveraging its independently developed fifth-generation A-type asymmetrical tooth profile technology and dual-stage screw compressor architecture, it achieves a 10%-15% increase in air output at the same power level.

Send Inquiry

Product Description

Employs a dual-segment screw compressor

Two stage Compression Fixed Speed Screw Air Compressor Utilizes a fifth-generation α-type asymmetric 5-6 tooth profile with a low-tip speed lead design, independently developed and manufactured with complete independent intellectual property rights.

Uses imported heavy-duty bearings and a large-diameter rotor, resulting in lower speeds, longer compressor lifespan, and significantly improved volumetric efficiency.

Compressed air follows a natural recirculation from the high-pressure end to the low-pressure end. The higher the compression ratio, the greater the leakage. At the same power and exhaust pressure, dual-stage compression significantly reduces recirculation leakage compared to single-stage compression, and volumetric efficiency is greatly improved, achieving an increase of 10-15%.

Two stage Compression Fixed Speed Screw Air Compressor

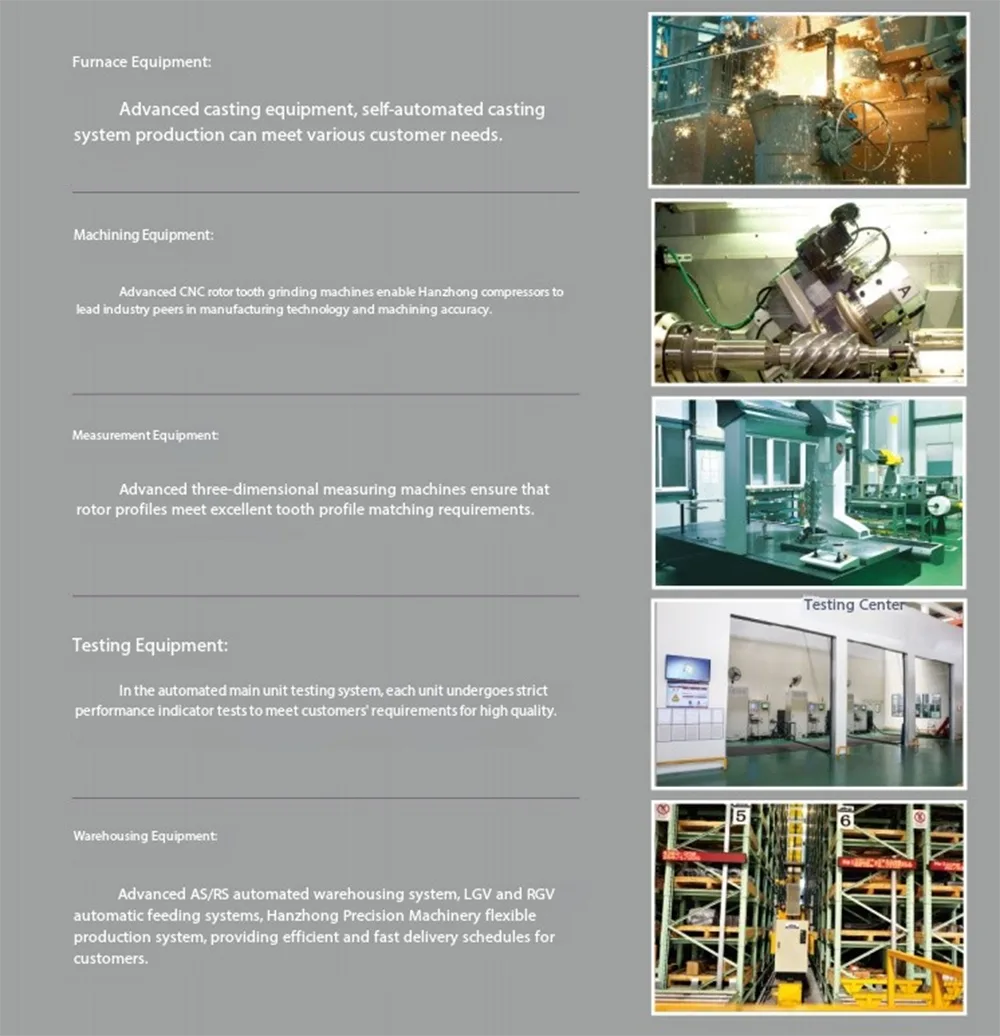

Main Equipment:

Casting Equipment: Advanced casting equipment and an automated casting system allow us to meet diverse customer needs.

Machining Equipment: Advanced CNC rotor tooth grinding machines ensure that Hanbell compressors lead the industry in manufacturing precision.

Measurement Equipment: Advanced 3D measuring machines ensure excellent tooth profile matching to meet rotor design requirements.

Testing Equipment: An automated main unit testing system ensures that each main unit undergoes rigorous performance testing to meet customers' high-quality requirements.

Warehousing Equipment: Advanced AS/RS automated warehousing system, LGV and RGV automated feeding systems, and Hanbell Precision Machinery's flexible production system ensure efficient and fast delivery to customers.

Two stage Compression Fixed Speed Screw Air Compressor

Hanbell Two-Stage Compression Industrial Frequency Screw Air Compressor Technical Specifications

Model	Motor Power (kW)	Discharge Pressure (bar)	Volumetric Flow Rate (m³/min)	Outlet Size (inch)	Unit Net Weight (kg)	Overall Dimensions (LWH) mm
AA6-37A-D	37	8	7.9	G2	1750	190015001600
AA6-37A-D	37	10	6.1	G2	1750	190015001600
AA6-37A-D	37	13	5.8	G2	1750	190015001600
AA6-45A-D	45	8	9.6	G2	1850	190015001600
AA6-45A-D	45	10	9.5	G2	1850	190015001600
AA6-45A-D	45	13	6.0	G2	1850	190015001600
AA6-55A-D	55	8	12.5	DN50	2390	250016001700
AA6-55A-D	55	10	9.8	DN50	2390	250016001700
AA6-55A-D	55	13	7.7	DN50	2390	250016001700
AA6-75A-D	75	8	16.5	DN50	2430	250016001700
AA6-75A-D	75	10	12.3	DN50	2430	250016001700
AA6-75A-D	75	13	12.1	DN50	2430	250016001700
AA6-90A-D	90	8	20.1	DN80	3350	298018502020
AA6-90A-D	90	10	16.0	DN80	3350	298018502020
AA6-90A-D	90	13	12.1	DN80	3350	298018502020
AA6-110A-D	110	8	23.7	DN80	3730	298018502020
AA6-110A-D	110	10	18.6	DN80	3730	298018502020
AA6-110A-D	110	13	15.8	DN80	3730	298018502020
AA6-132A-D	132	8	28.2	DN100	4780	328018802120
AA6-132A-D	132	10	22.4	DN100	4780	328018802120
AA6-132A-D	132	13	19.5	DN100	4780	328018802120
AA6-160A-D	160	8	32.8	DN100	5020	328018802120
AA6-160A-D	160	10	27.3	DN100	5020	328018802120
AA6-160A-D	160	13	22.1	DN100	5020	328018802120
AA6-185A-D	185	8	39.1	DN100	5200	345020002150
AA6-185A-D	185	10	33.5	DN100	5200	345020002150
AA6-185A-D	185	13	28.0	DN100	5200	345020002150
AA6-200A-D	200	8	42.7	DN100	5590	345020002150
AA6-200A-D	200	10	37.0	DN100	5590	345020002150
AA6-200A-D	200	13	33.0	DN100	5590	345020002150
AA6-220A-D	220	8	47.8	DN125	6400	350021002150
AA6-220A-D	220	10	41.6	DN125	6400	350021002150
AA6-220A-D	220	13	36.4	DN125	6400	350021002150
AA6-250A-D	250	8	54.3	DN125	7350	350021002150
AA6-250A-D	250	10	47.4	DN125	7350	350021002150
AA6-250A-D	250	13	41.1	DN125	7350	350021002150
AA6-280A-D	280	8	57.3	DN125	7600	350021002150
AA6-280A-D	280	10	52.3	DN125	7600	350021002150
AA6-280A-D	280	13	46.6	DN125	7600	350021002150
AA6-315A-D	315	8	64.4	DN125	8500	450021502250
AA6-315A-D	315	10	56.7	DN125	8500	450021502250
AA6-315A-D	315	13	51.6	DN125	8500	450021502250
AA6-355A-D	355	8	72.7	DN125	9000	450021502250
AA6-355A-D	355	10	63.7	DN125	9000	450021502250
AA6-355A-D	355	13	55.9	DN125	9000	450021502250
