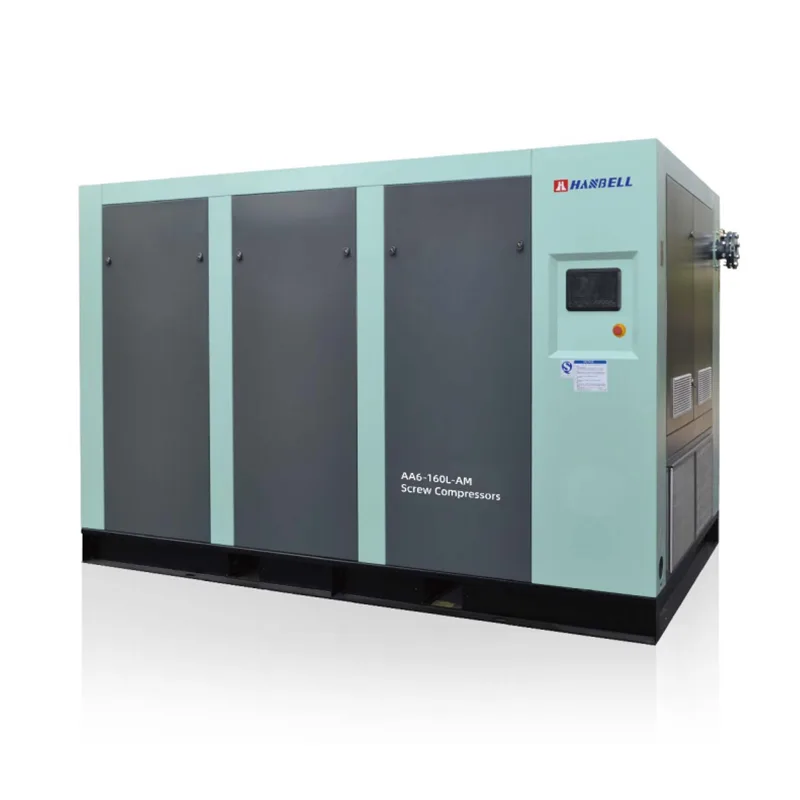

Low Pressure Fixed Speed Screw Air Compressor
As a professional supplier of Low Pressure Fixed Speed Screw Air Compressor, Yuzhen's products utilize core components from Hanbell fixed-speed screw compressors.

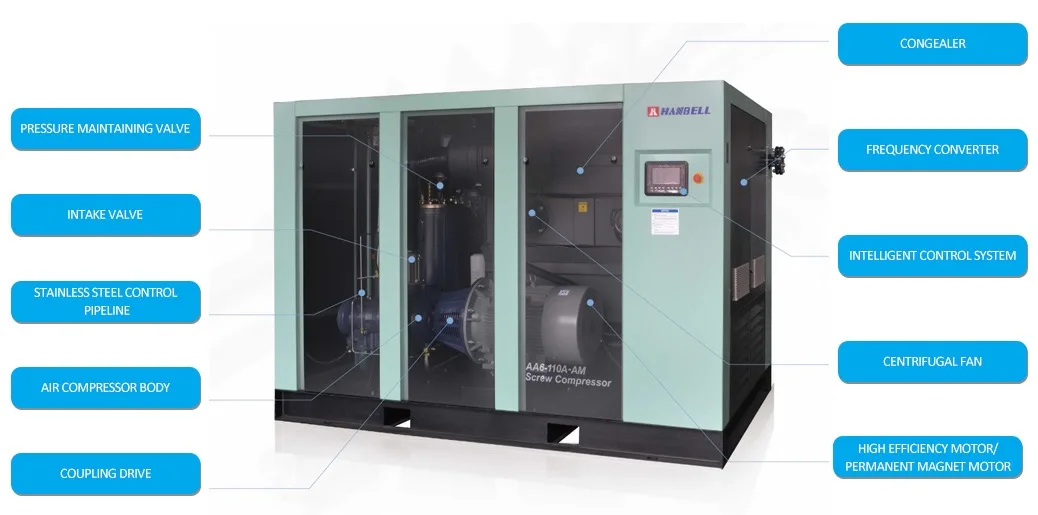

Product Features
1. Elegant appearance, low noise, reach LEVEL 1 energy effeciency.
2. Low Pressure Fixed Speed Screw Air Compressor Adopts Hanbell own AB series low pressure air end, directly connected to the motor with low speed, high efficiency and reliability.
3. Intake system adopts high-efficiency filter with 1um filtration accuracy.
4. The centrifugal fan cooling system has a unique design style supporting the cooling of variable frequency fan and the configuration of inlet filter screen, which makes the air compressor more energy-saving, more reliable and more convenient for maintenance.
5. The gas pipeline adopts steel pipe + flexible joint, and the oil pipeline adopts O ring + plane sealing structure design, which can effectively prevent pipeline vibration and leakage, and realize maintenance free forever.
6. Large oil-gas separation system, rotating arm structure, fully humanized design.
7. Multiple joint control systems can realize intelligent control according to the amount of gas used.
8. Support the company's special centralized control system. The intelligent system can keep the air compressor in stable operation by detecting the subtle gas consumption changes of the air compressor station system to save energy.
9. Support the built-in heat recovery system to provide users with domestic hot water supply, etc..
10. Customized for textile industry to realize unattended operation and all-round monitoring to meet the production needs of different working conditions.
Product Technical Description
|
Model |
Motor Power (kW) |
Discharge Pressure (bar) |
Volumetric Flow Rate (m³/min) |
Outlet Size (inch) |
Unit Net Weight (kg) |
Overall Dimensions (LWH) mm |
|
AA6-55L-D/-AM |
55 |
5 |
16.5 |
DN65 |
2400 |
250016001700 |
|
AA6-55L-D/-AM |
55 |
6 |
12.6 |
DN65 |
2400 |
250016001700 |
|
AA6-75L-D/-AM |
75 |
5 |
19.0 |
DN80 |
3700 |
298018502020 |
|
AA6-75L-D/-AM |
75 |
6 |
16.7 |
DN80 |
3700 |
298018502020 |
|
AA6-90L-D/-AM |
90 |
5 |
22.8 |
DN80 |
3850 |
298018502020 |
|
AA6-90L-D/-AM |
90 |
6 |
20.3 |
DN80 |
3850 |
298018502020 |
|
AA6-110L-D/-AM |
110 |
5 |
27.8 |
DN100 |
4400 |
328018002120 |
|
AA6-110L-D/-AM |
110 |
6 |
26.7 |
DN100 |
4400 |
328018002120 |
|
AA6-132L-D/-AM |
132 |
5 |
34.1 |
DN100 |
4700 |
328018802120 |
|
AA6-132L-D/-AM |
132 |
6 |
29.6 |
DN100 |
4700 |
328018802120 |
|
AA6-160L-D/-AM |
160 |
5 |
42.9 |
DN100 |
5200 |
345020002150 |
|
AA6-160L-D/-AM |
160 |
6 |
38.2 |
DN100 |
5200 |
345020002150 |
|
AA6-185L-D/-AM |
185 |
5 |
48.1 |
DN100 |
6200 |
345020002150 |
|
AA6-185L-D/-AM |
185 |
6 |
42.4 |
DN100 |
6200 |
345020002150 |
|
AA6-200L-D/-AM |
200 |
5 |
53.1 |
DN125 |
7500 |
400021502250 |
|
AA6-200L-D/-AM |
200 |
6 |
48.4 |
DN125 |
7500 |
400021502250 |
|
AA6-220L-D/-AM |
220 |
5 |
57.6 |
DN125 |
7700 |
400021502250 |
|
AA6-220L-D/-AM |
220 |
6 |
53.4 |
DN125 |
7700 |
400021502250 |
|
AA6-250L-D/-AM |
250 |
5 |
64.7 |
DN125 |
8500 |
450022802400 |
|
AA6-250L-D/-AM |
250 |
6 |
57.9 |
DN125 |
8500 |
450022802400 |
|
AA6-280L-D/-AM |
280 |
5 |
70.0 |
DN150 |
8800 |
450022802400 |
|
AA6-280L-D/-AM |
280 |
6 |
65.0 |
DN150 |
8800 |
450022802400 |
|
AA6-315L-D/-AM |
315 |
5 |
73.9 |
DN150 |
9500 |
450022802400 |
|
AA6-315L-D/-AM |
315 |
6 |
74.2 |
DN150 |
9500 |
450022802400 |
| Model | Motor Power (kW) | Discharge Pressure (bar) | Volumetric Flow Rate (m³/min) | Outlet Size (inch) | Unit Net Weight (kg) | Overall Dimensions (L*W*H) mm |
| AA6-22L/-AM | 22 | 3 | 6.7 | DN50 | 1450 | 1900*1500*1600 |
| AA6-22L/-AM | 22 | 4 | 6.1 | DN50 | 1450 | 1900*1500*1600 |
| AA6-22L/-AM | 22 | 5 | 6.0 | DN50 | 1450 | 1900*1500*1600 |
| AA6-37L/-AM | 37 | 3 | 9.9 | DN65 | 1650 | 1900*1500*1600 |
| AA6-37L/-AM | 37 | 4 | 8.3 | DN65 | 1650 | 1900*1500*1600 |
| AA6-37L/-AM | 37 | 5 | 8.2 | DN65 | 1650 | 1900*1500*1600 |
| AA6-45L/-AM | 45 | 3 | 13.1 | DN65 | 1800 | 1900*1500*1600 |
| AA6-45L/-AM | 45 | 4 | 9.9 | DN65 | 1800 | 1900*1500*1600 |
| AA6-45L/-AM | 45 | 5 | 9.9 | DN65 | 1800 | 1900*1500*1600 |
| AA6-55L/-AM | 55 | 3 | 15.9 | DN80 | 2800 | 2980*1850*2020 |
| AA6-55L/-AM | 55 | 4 | 15.5 | DN80 | 2800 | 2980*1850*2020 |
| AA6-55L/-AM | 55 | 5 | 13.0 | DN65 | 1900 | 2500*1600*1700 |
| AA6-75L/-AM | 75 | 3 | 20.3 | DN80 | 3200 | 2980*1850*2020 |
| AA6-75L/-AM | 75 | 4 | 20.2 | DN80 | 3200 | 2980*1850*2020 |
| AA6-75L/-AM | 75 | 5 | 15.3 | DN80 | 3200 | 2980*1850*2020 |
| AA6-90L/-AM | 90 | 3 | 25.7 | DN80 | 3600 | 2980*1850*2020 |
| AA6-90L/-AM | 90 | 4 | 23.1 | DN80 | 3600 | 2980*1850*2020 |
| AA6-90L/-AM | 90 | 5 | 20.2 | DN80 | 3600 | 2980*1850*2020 |
| AA6-110L/-AM | 110 | 3 | 32.3 | DN100 | 3800 | 3280*1880*2120 |
| AA6-110L/-AM | 110 | 4 | 25.7 | DN80 | 3600 | 2980*1850*2020 |
| AA6-110L/-AM | 110 | 5 | 23.0 | DN80 | 3600 | 2980*1850*2020 |
| AA6-132L/-AM | 132 | 3 | 35.7 | DN125 | 4500 | 3450*2000*2150 |
| AA6-132L/-AM | 132 | 4 | 32.2 | DN100 | 4000 | 3280*1880*2120 |
| AA6-132L/-AM | 132 | 5 | 25.6 | DN100 | 4000 | 3280*1880*2120 |
| AA6-160L/-AM | 160 | 3 | 42.6 | DN125 | 4700 | 3450*2000*2150 |
| AA6-160L/-AM | 160 | 4 | 38.0 | DN125 | 4700 | 3450*2000*2150 |
| AA6-160L/-AM | 160 | 5 | 35.5 | DN125 | 4700 | 3450*2000*2150 |
| AA6-185L/-AM | 185 | 3 | 46.7 | DN125 | 4900 | 3450*2000*2150 |
| AA6-185L/-AM | 185 | 4 | 42.4 | DN125 | 4900 | 3450*2000*2150 |
| AA6-185L/-AM | 185 | 5 | 37.6 | DN125 | 4900 | 3450*2000*2150 |
| AA6-200L/-AM | 200 | 3 | 52.7 | DN125 | 7000 | 4000*2150*2250 |
| AA6-200L/-AM | 200 | 4 | 46.6 | DN125 | 7000 | 4000*2150*2250 |
| AA6-200L/-AM | 200 | 5 | 42.2 | DN125 | 7000 | 4000*2150*2250 |
| AA6-220L/-AM | 220 | 3 | 63.2 | DN125 | 8000 | 4500*2280*2400 |
| AA6-220L/-AM | 220 | 4 | 52.6 | DN125 | 7500 | 4000*2150*2250 |
| AA6-220L/-AM | 220 | 5 | 45.0 | DN125 | 7500 | 4000*2150*2250 |
| AA6-250L/-AM | 250 | 3 | 66.2 | DN125 | 9000 | 4500*2280*2400 |
| AA6-250L/-AM | 250 | 4 | 65.0 | DN125 | 9000 | 4500*2280*2400 |
| AA6-250L/-AM | 250 | 5 | 52.5 | DN125 | 7800 | 4000*2150*2250 |
Company certificate

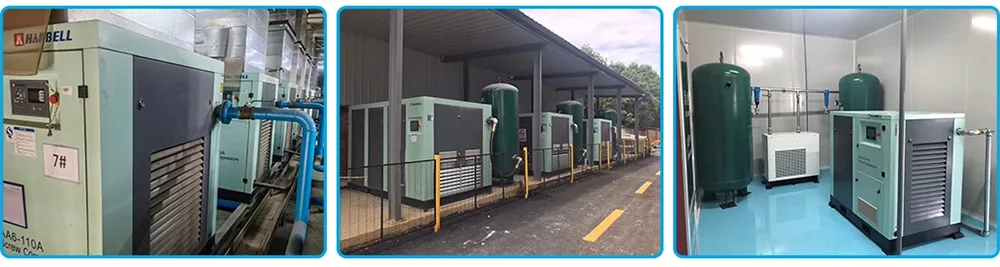

Cooperation cases
Company exhibition

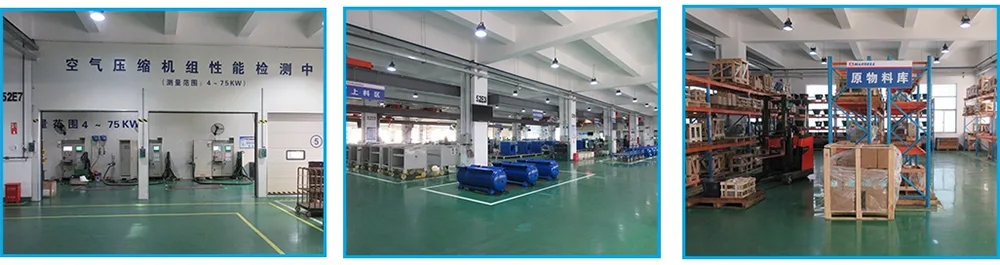

Factory environment
Workshow display
FAQ
1. What trade terms do we provide? What kind of settlement currency do we offer?
Trade term :CIF ,CFR ,FOB,Ex-Works
As far Our business traded in Dollars .Euros and RMB
2. How long is our delivery?
Our standard delivery time is 30-40 days after confirmation order & receiving receipts for standard compressors, for the other non-standard requirement will be discussed case by case.
3. What is the voltage of the compressor?
The available voltage includes 380V150HZ13Phase, 400V150HZ13P, 415V150HZ13P, 220V160HZ13P, 380V160HZ13P, 440V160Hz13P. At the same time, we provide other voltage according to customer requirement.
4. Can our compressor run in high temperature environment? What is the working temperature range for our machine?
Yes, our machine would run in high temperature environment until now, our products have been sold to many countries which would meet high temperature in summer, such like lran, Saudi Arabia, Egypt, Algeria, etc.. Work temperature range :1 - 45 °C (33.8°F - 113°F)
5 What's the min. order requirement?
Min. order requirement is 1PC.
