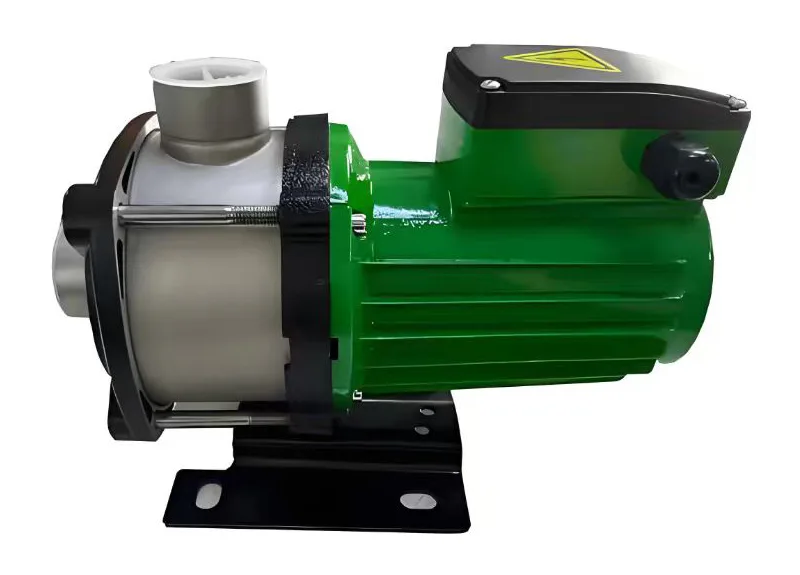

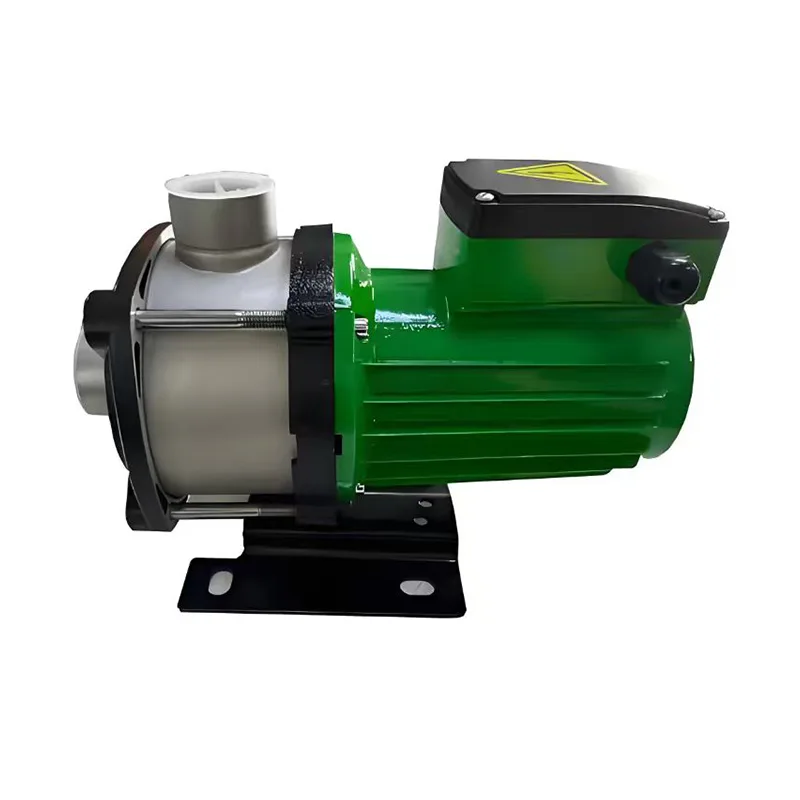

Fixed Speed Water Pump

Fixed Speed Water Pump refers to pumps (e.g., centrifugal or positive displacement pumps) powered directly by the grid’s standard frequency (50Hz in China, 60Hz in some countries). Key characteristics include:

1.Fixed Speed Operation

Motor speed is tied to grid frequency and cannot be directly adjusted. For example, in a 50Hz grid, a 2-pole motor runs at ~2900 RPM, and a 4-pole motor at ~1450 RPM.

2.Simple & Robust Design

Typically driven directly by asynchronous motors without frequency converters, resulting in simple mechanical structures, low maintenance costs, and strong environmental adaptability.

3.Control Methods

● Direct Start: Used for low-power pumps, with high inrush current.

● Star-Delta Start / Soft Start: Reduces starting impact for high-power pumps.

● Flow/Pressure Regulation: Relies on valve throttling or bypass loops, leading to relatively higher energy consumption.

4.Applications

● Urban/rural water supply, firefighting systems requiring stable flow

● Industrial cooling circuits, agricultural irrigation with minimal speed adjustment needs

● Chemical and mining industries for fluid transfer in harsh conditions

5.Comparison with Variable Frequency Pumps

● Energy Efficiency: Under partial load, industrial frequency pumps are generally less efficient due to valve-dependent regulation.

● System Cost: Lower initial investment than variable frequency systems, but potentially higher long-term energy consumption.
