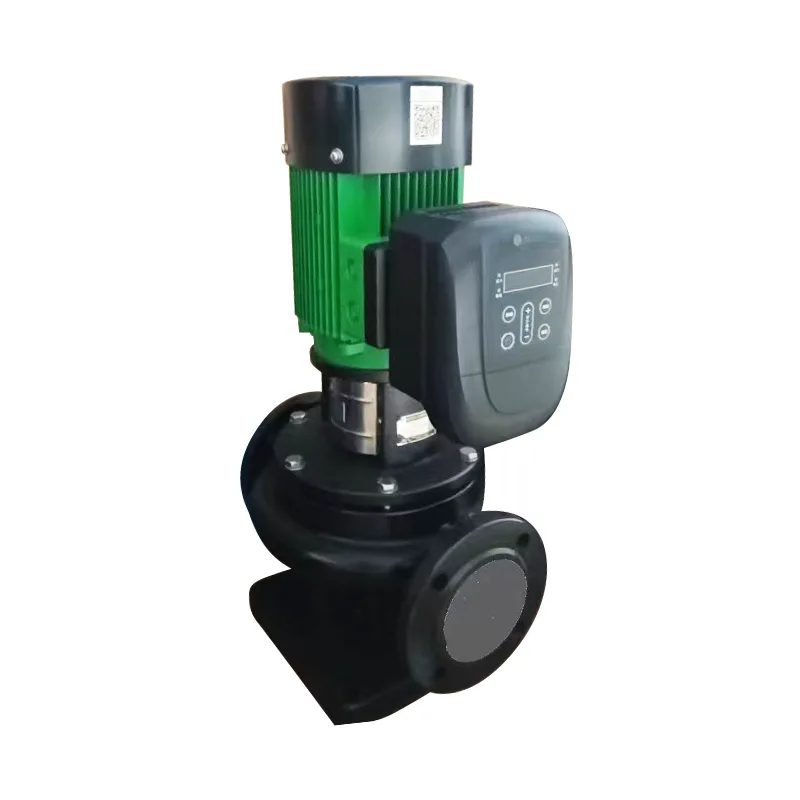

Variable Frequency Water Pump

A variable frequency water pump is an intelligent pumping system that uses a frequency converter to control and adjust the rotational speed of the pump motor.

1.Core Principle:

Traditional water pumps operate at a constant speed, regulating flow and pressure by adjusting valve openings. This method is energy-intensive and places significant stress on pipelines and equipment. In contrast, the core of a variable frequency water pump lies in "variable frequency drive."

The frequency converter receives signals from pressure sensors, flow meters, or control systems (e.g., a set constant pressure value).

Based on actual demand, the frequency converter dynamically changes the frequency of the power supplied to the pump motor.

According to motor principles, the rotational speed of the motor is proportional to the power frequency (n = 60f/p). Thus, adjusting the frequency enables precise and smooth regulation of the pump's rotational speed.

Changes in rotational speed directly affect the pump's flow, head, and power consumption, achieving energy supply on demand.

2.Key Features and Advantages:

High Efficiency and Energy Savings: This is the most prominent advantage. The power consumption of a pump is proportional to the cube of its rotational speed. When demand decreases, a slight reduction in speed significantly lowers energy consumption, typically achieving energy savings of 20% to 50%.

Constant Pressure and Stable Flow: It can maintain a constant pressure in the water supply network (i.e., constant pressure water supply). Regardless of changes in water usage, water pressure remains stable, significantly improving user comfort.

Soft Start/Soft Stop: The motor starts gradually from a low speed, avoiding the high current surge (up to 7 times the rated current) during direct startup. This reduces grid impact and equipment wear, extending the lifespan of the pump and motor.

Reduced Noise and Wear: Smooth speed adjustment minimizes water hammer effects, pipeline vibration, and mechanical wear, resulting in quieter operation. Intelligent Control: It can be easily integrated into building automation, smart irrigation, and other systems, enabling remote monitoring, fault diagnosis, and multi-pump coordination (e.g., "one-drive-many" control).
