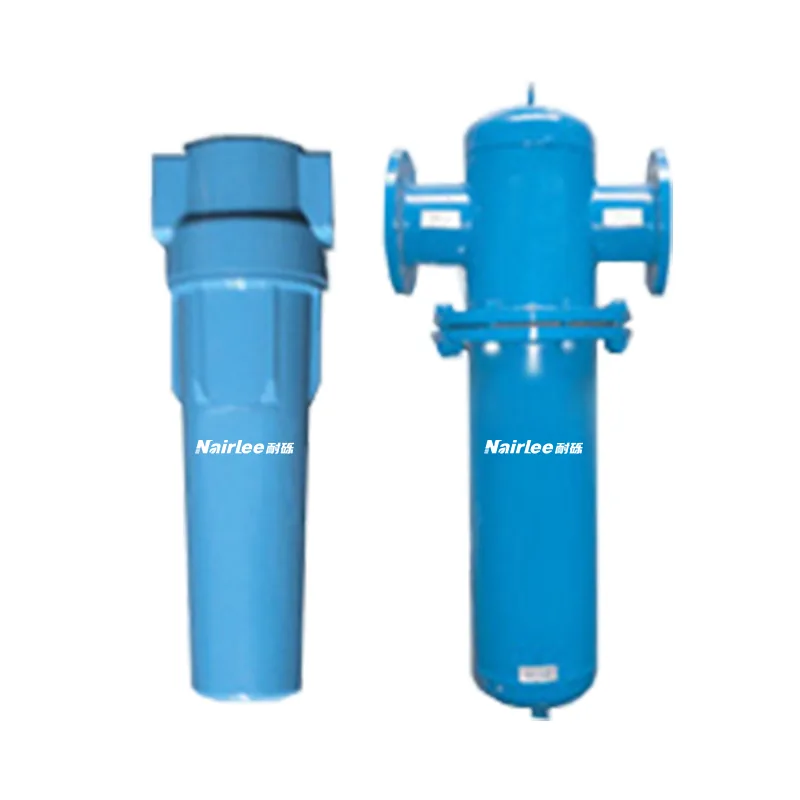

Aluminum Alloy Air Filter

With its high performance, durability and stability, Yuzhen's high-quality Aluminum Alloy Air Filter has become one of the key components for many enterprises to improve their air systems.

The core function of Aluminum Air Filter is to clean dirty air.

Precision filtration, interception of all whether compressed air moisture, oil mist, or micron dust particles, can accurately intercept.

Low pressure drop design, Yuzhen Aluminum Alloy Air Filter uses a special aluminum alloy filter structure to reduce the pressure drop to a minimum.

Adapt to multi-pressure scenarios, the flow automatically follows the demand, the production pressure of the factory is not fixed, sometimes it is a low load of 0.3MPa, sometimes it is a high demand of 1.5MPa, Aluminum Air Filter It will automatically correct the flow according to the actual use pressure.

Applicable Scenarios

Electronics manufacturing workshops

Food processing factories

Automotive parts production lines

Shipbuilding industry

Filter element structure

Separator filter(Q)

For bulk liquid removal plus a 3 micron coalescer (5ppm-w/w maximum remaining oil content)

Two-stage filtration

First stage-two stainless steel orifice tubes provide 10 micron mechanical separation

Second stage-in-depth fiber media captures solid and liquid particles to 3 micron

Air line filter(P)

For removal of liquid water and oil; removes solid particles to 1 micro (1.0ppm w/w maximum remaining oil content)

Corrosion resistant inner and outer cores

Two-stage filtration

First stage-captures larger particles with alternate layers of fiber media and media screen

Second stage-coalesces aerosols and captures solid particles with multiple layers of epoxy bonded, blended fiber media

High efficiency oil removal filter(S)

For coalescing fine water and oil aerosols; removes solid particles to 0.01 micron(0.01ppm w/w maximum remaining oil content)

Corrosion resistant inner and outer cores

Two-stage filtration

First stage-multiple layers of bonded, blended fiber media for fine coalescence Second stage-multiple layers of bonded, blended fiber media for fine coalescence Outer coated.

Closed cell foam sleeve

Ultra high efficiency oil removal filter(AA)

For coalescing ultra-fine oil aerosols; removes solid particles to 0.001 micron (0.001 ppm w/w maximum remaining oil content)

Corrosion resistant inner and outer cores

Two-stage filtration

First stage-coated, closed cell foam sleeve acts as pre-filter and flow disperser Second stage-multiple layers of matrix blended fiber media for ultra-fine coalescence.

Outer coated, closed cell foam sleeve

Oil vapor removal filter(H)

For removal of oil and hydrocarbon vapors normally absorbable by activated carbon; removes solid particles to 0.001 (0.003 ppm w/w maximum remaining oil content)

Corrosion resistant inner and outer cores

Two-stage filtration

First stage-a stabilized bed of finely divided carbon particles removes the majority of the vapor

Second stage-multiple layers of fiber media with bonded micro fine carbon particles removes the remaining oil vapor.

Multiple layers of fine media prevent the particle migration Outer coated, closed cell foam sleeve prevents fiber migration

Designed for 1000 hour life at rated conditions

Flow rate corrections for different pressure filters
