Stainless Steel Air Filter

As a professional factory specializing in China Stainless Steel Air Filters, Yuzhen's Made in China filtration equipment is compatible with international compressor brands such as Hanbell, and can help factories solve compressed air pollution problems.

Send Inquiry

Product Description

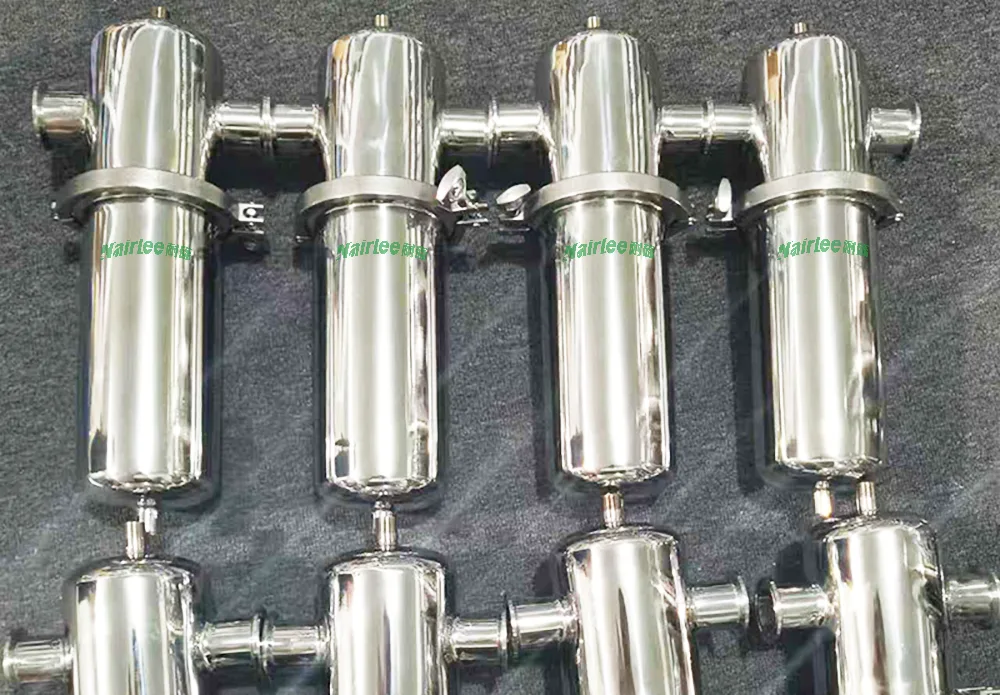

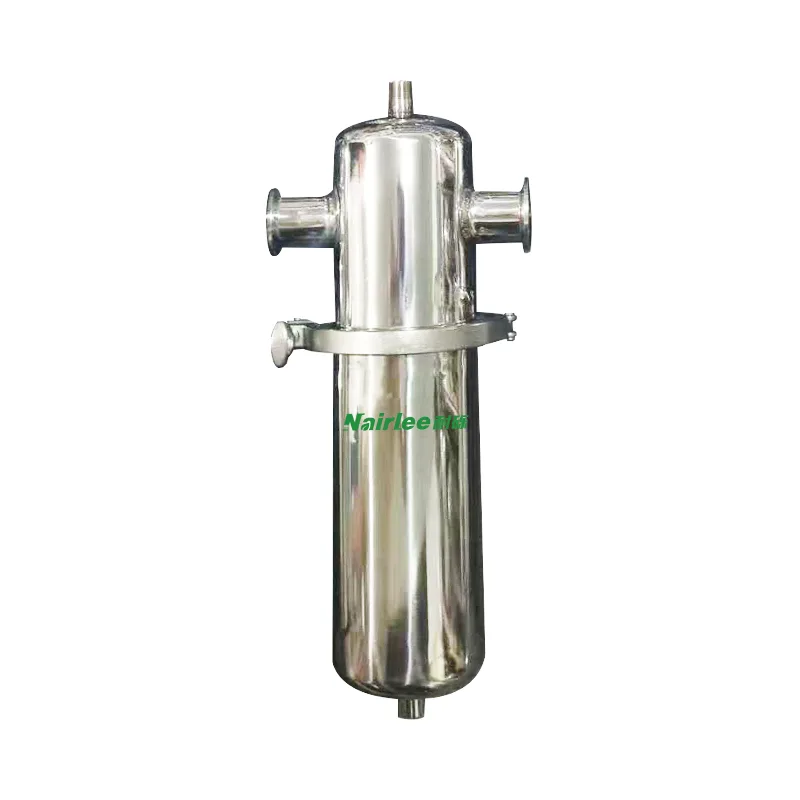

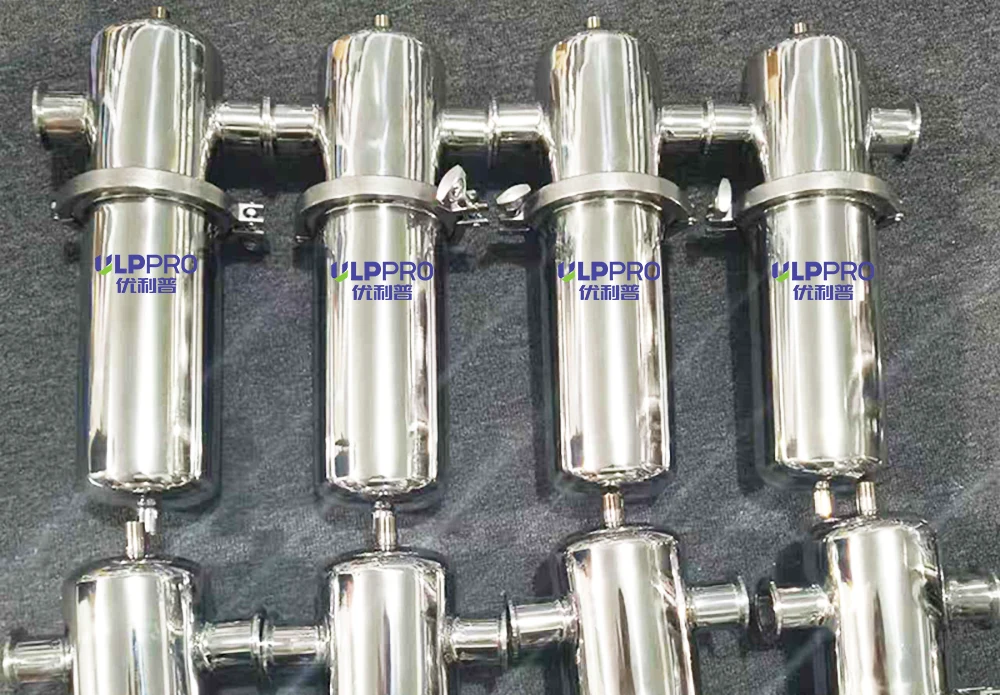

The shell is made of 304 stainless steel, with polished inner and outer surfaces. It features corrosion resistance and low resistance, and is widely used in the filtration and treatment of various industrial gases, such as in the semiconductor, metallurgy, medical, pharmaceutical, and food chemical industries.

Filter model	Flow Rate (Nm³/min)	Interface	Type of filterelement	Quantity	Width (mm)	Height (mm)	Barrel diameter
LK-010	1	1	E*-16	1	140	325	76
LK-010	1	DN25	E*-16	1	210	330	76
LK-020	2	1	E*-20	1	140	325	76
LK-020	2	DN25	E*-20	1	210	330	76
LK-030	3	1-1/2	E*-24	1	162	388	89
LK-030	3	DN40	E*-24	1	238	398	89
LK-050	5	1-1/2	E*-28	1	162	498	89
LK-050	5	DN40	E*-28	1	238	508	89
LK-070	7	1-1/2	E*-32	1	162	558	89
LK-070	7	DN40	E*-32	1	238	568	89
LK-110	11	2	E*-36	L	178	679	102
LK-110	11	DN50	E*-36	1	246	680	102
LK-140	15	DN65	E*-40	1	333	784	133
LK-180	20	DN65	E*-44	1	333	944	133
LK-220	25	DN80	430*	1	380	803	159
LK-350	35	DN80	620*	1	380	962	159
LK-400	40	DN100	620*	1	380	982	159

We also provide Stainless Steel Precision Filter with license 1.0mpa.

Filter model	Flow Rate (Nm³/min)	Interface	Type of filterelement	Quantity	Width (mm)	Height (mm)	Barrel diameter
Filter model	Flow Rate (Nm³/min)	Interface	Type of filterelement	Quantity	Width (mm)	Height (mm)	Barrel diameter
LKRQ-350	40	PL80	E*-44	2	419	1037	219
LKRQ-550	60	PL100	E*-44	3	419	1053	219
LKRQ-600	60	PL125	E*-44	3	419	1051	219
LKRQ-750	80	PL125	E*-44	4	473	1076	273
LKRQ-800	80	PL150	E*-44	4	473	1091	273
LKRQ-1100	120	PL150	E*-44	6	565	1123	325
LKRQ-1300	140	PL150	E*-44	7	617	1195	377
LKRQ-1500	160	PL200	E*-44	8	700	1272	400
LKRQ-2000	220	PL200	E*-44	11	750	1301	450
LKRQ-2500	260	PL250	E*-44	13	850	1386	500
LKRQ-3000	320	PL250	E*-44	16	860	1425	550
LKRQ-4000	400	PL300	E*-44	20	910	1496	600

Represents the filtering level

9th level filtration accuracy: 3 microns, oil content: 3 ppm

7th level filtration accuracy: 1 micron, oil content: 1 ppm

5th level filtration accuracy: 0.01 microns, oil content: 0.01 ppm

3rd level filtration accuracy: 0.01 microns, oil content: 0.001 ppm

Level 1 (activated carbon) filtration accuracy: 0.01 microns, oil content: 0.001 ppm

We provide the filter element, which could instead of Hankison series and Domnick Hunter series, also have the Hydrophobic Expanded Polytetrafluoroethylene (ePTFE) Pleated Filter Cartridge.
