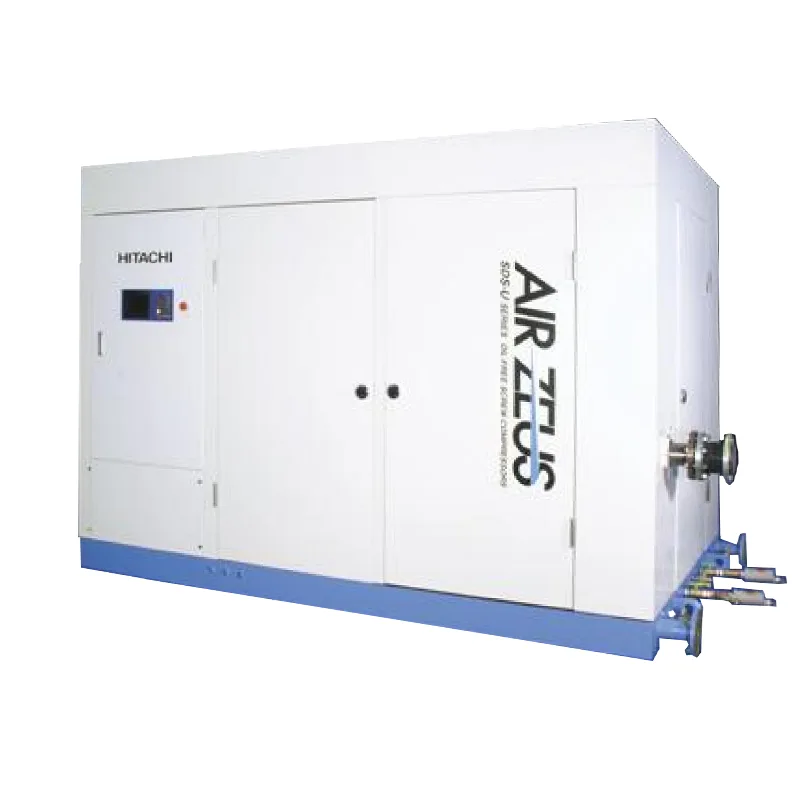

Hitachi Oil-free Dry Screw Air Compressor

Structure

1. Realize a low-noise exhaust muffler

Effectively reduce pressure pulsation and significantly lower the harsh high-frequency noise.

2. Highly reliable main motor

Suitable for harsh environments, with fully enclosed outer flange type, and all models adopt 4P motors.

3. Achieving high efficiency and energy-saving new compressor body

Using CFD three-dimensional fluid analysis, the optimal fluid path is adopted to achieve high efficiency.

4. More environmentally friendly oil mist recovery system

OMCS (Oil Mist Capturing System)

Standard configuration

5. Long-life check valve

A long-lasting and highly reliable piston-type air compressor-specific lifting type check valve

6. Highly durable capacity regulating valve

Use high durability hydraulic cylinder regulating valves (with a lifespan of 3 million cycles)

Features

1. Achieve high efficiency and energy conservation

Adopt a new type of compressor body High efficiency

2. Adopt a new type of high-performance color operation panel with better operability

Easy to operate

3. Low noise

Environmental protection · People-oriented

4. Unique energy-saving control

The ECO effect of protecting the Earth

Variable-frequency series

1. By controlling the rotational speed through the frequency converter, a more efficient control of the variation range of exhaust pressure is achieved, with the pressure variation being approximately 0.01 MPa. This reduces the exhaust pressure and saves power consumption.

When the load rate is 60%, it saves approximately 14% compared to the two-stage control type.

2. With the unique APC (Active Power Control), better energy conservation is achieved. The unique APC function utilizes a fixed end pressure to achieve better energy savings.

When the load rate is 60%, compared with the two-stage control method, it can save approximately 25%.
