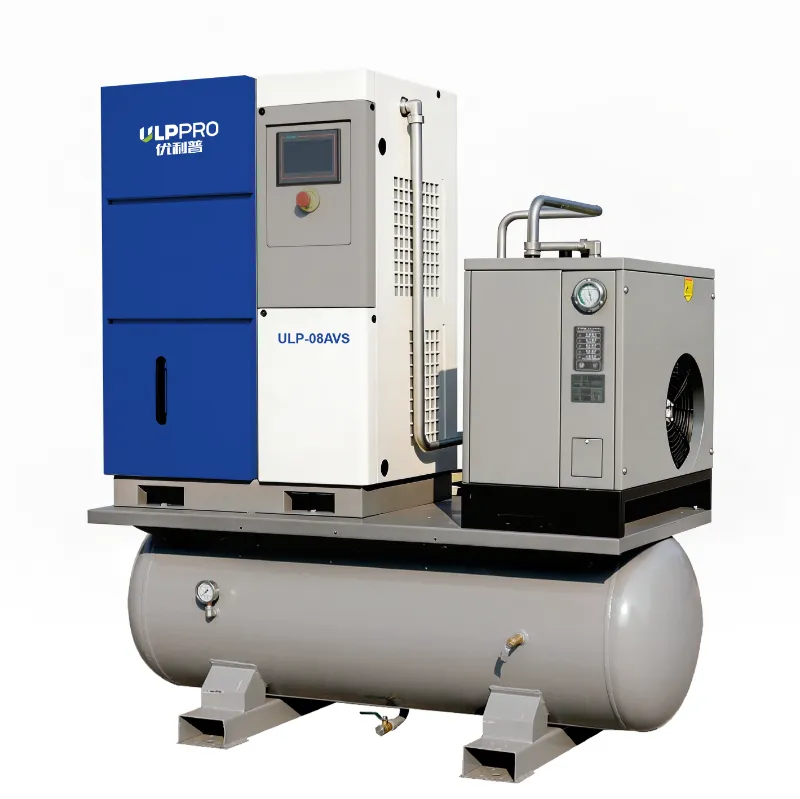

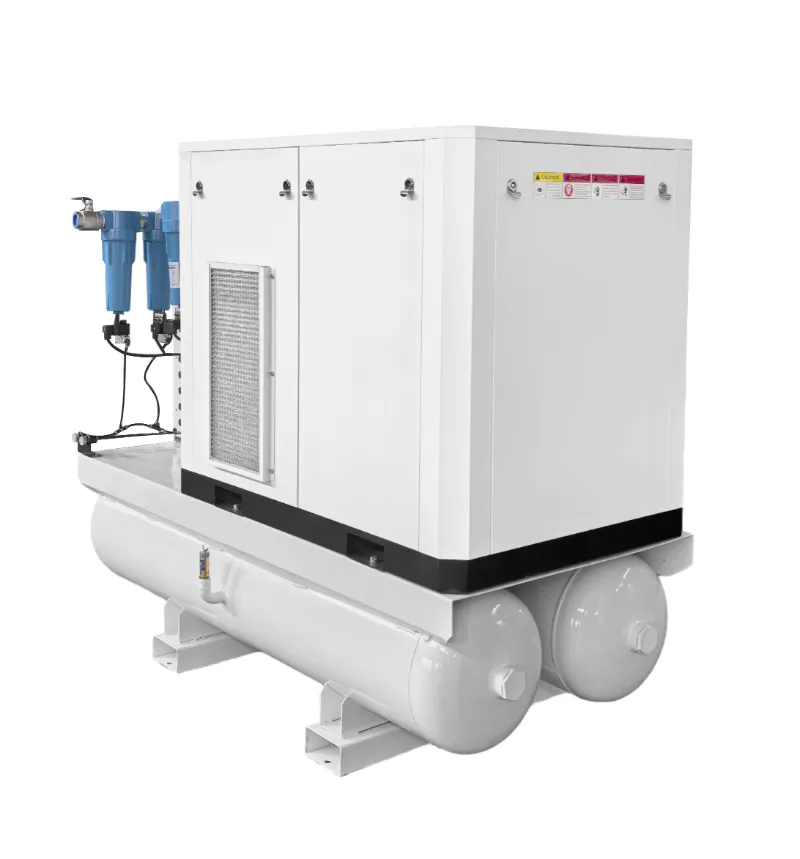

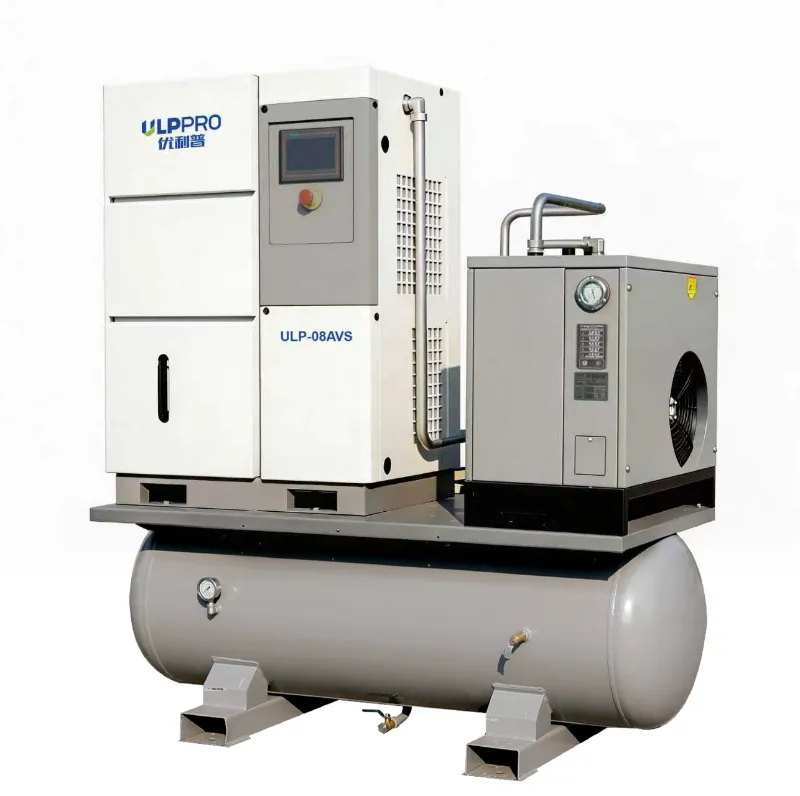

Full-Feature Integrated Variable Frequency Screw Air Compressor

ULPPRO Full-Feature Integrated Variable Frequency Screw Air Compressor made by China, integrated with air compressor, air dryer, air storage tank and high-efficiency precision filter, this is an all-in-one system that does not require pipeline installation. It features quick installation and ready-to-use, outstanding performance, practical and convenient, high efficiency and energy conservation characteristics, etc.

Send Inquiry

Product Description

Advantage and structure feature

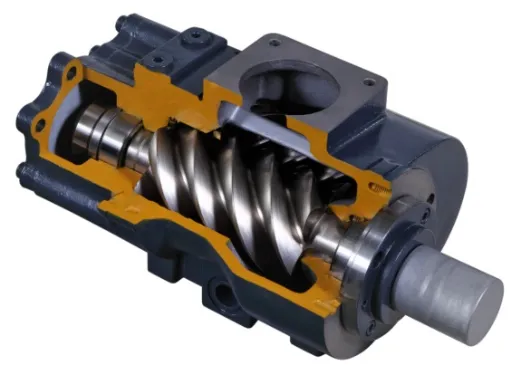

Air End

Screw rotor profile design patent: ZL94 1 12198.4

Design of air end pressure: 0.3MPa~1.80MPa

Air end volume efficiency of compression: ≥ 95%

Rotor diameter and center distance: Large

Low power consumption: the level of energy efficiency index 1

Direct driven: transmission ratio 1:1

low noise

Rotor material: special carbon steel SAE1141

Air end bearing: imported SKF brand

Working temperature is up to 110 degrees under the continue running conditions

Intelligent Control

RS485 communication mode transmission control signal

Intelligent PID flow regulation mode

Closed loop control, with ideal dynamic characteristics and control precision

Accurately controlled torque

Fast system response speed, good acceleration and deceleration characteristic

Constant pressure control, avoid generation exceed energy losses

Vectorial Inverter

High utilization rate, panel disassembly, switching use, memory function

Perfect protection: phase loss, phase-to-phase short circuit, short circuit to ground, over current, over voltage, under voltage, overload, and overheating can be realized

Motor thermal protection circuit board enhanced coating, dustproof and anti-corrosion;

The system has low heat generation, powerful overload capability and unique current limiting technology

Proprietary and efficient control program

Ultra-wide frequency design and wider range of control

Inlet Valve

High vacuum degree: 700mmHg

Large suction area

Low load energy consumption in unloaded operation

Fast check: prevent unloading and shutdown oil injection

Solenoid valve: Italy ODE brand

Valve seal: fluorine rubber material

Integrated design, low failure and maintenance rate

Cast aluminum, avoid rusting and deformation affected by temperature.

Features of permanent magnet variable frequency air compressors

1. Ultra-low temperature lift design, compressor allows for stable operation of low frequency

2. Adopt closed-loop vector control system, PID adjustment is more accurate and stable

3. When the operating frequency is above 50%, the overall compressor system still maintains high volumetric efficiency

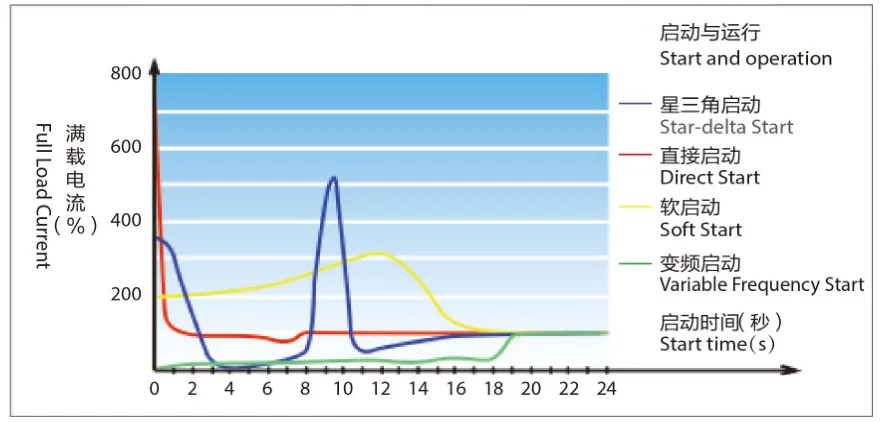

4. Stable startup, gentle acceleration, avoid current peak impact, and the power grid is protected from impact and overload startup

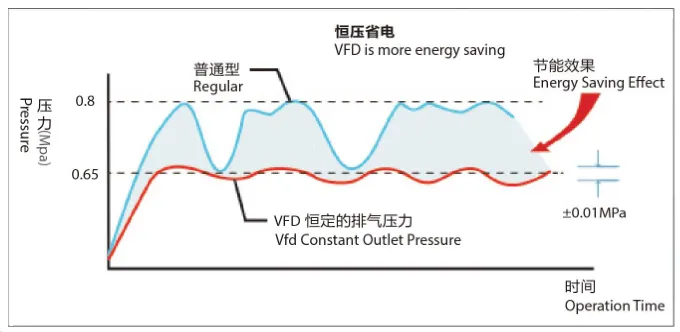

5. Precise voltage regulation, achieve target pressure fluctuation within 0.01MPa, reduce unnecessary energy loss. Pressure increases 0.1MPa, the electricity consumption rises by 6%.

Technical Specification

Model	Power		Rated Pressure		Free Air Delivery			Weight		Dimension			Outlet size
	Power		Rated Pressure		Free Air Delivery			Weight		L	W	H	Outlet size
	kW	hp	bar	psig	l/s	m³/min	cfm	kg	lb	mm	mm	mm	inch/mm
ULP-08AVS	7.5	10	8	116	20	1.2	42	150	331	800	600	900	G1/2
ULP-08AVS	7.5	10	10	145	17	1	35	150	331	800	600	900	G1/2
ULP-08AVS	7.5	10	13	189	10	0.6	21	150	331	800	600	900	G1/2
ULP-08AVS	7.5	10	16	232	10	0.6	21	150	331	800	600	900	G1/2
ULP-11AVS	11	15	8	116	28	1.7	60	280	617	980	850	1100	G3/4
ULP-11AVS	11	15	10	145	25	1.5	53	280	617	980	850	1100	G3/4
ULP-11AVS	11	15	13	189	22	1.3	46	280	617	980	850	1100	G3/4
ULP-11AVS	11	15	16	232	17	1	35	280	617	980	850	1100	G3/4
ULP-15AVS	15	20	8	116	42	2.5	88	300	661	980	850	1100	G3/4
ULP-15AVS	15	20	10	145	38	2.3	81	300	661	980	850	1100	G3/4
ULP-15AVS	15	20	13	189	32	1.9	67	300	661	980	850	1100	G3/4
ULP-15AVS	15	20	16	232	25	1.5	53	300	661	980	850	1100	G3/4
ULP-18AVS	18.5	25	8	116	50	3	106	350	772	1150	900	1400	G1¼
ULP-18AVS	18.5	25	10	145	47	2.8	99	350	772	1150	900	1400	G1¼
ULP-18AVS	18.5	25	13	189	38	2.3	81	350	772	1150	900	1400	G1¼
ULP-18AVS	18.5	25	16	232	30	1.8	64	350	772	1150	900	1400	G1¼
ULP-22AVS	22	30	8	116	60	3.6	127	370	816	1150	900	1400	G1¼
ULP-22AVS	22	30	10	145	53	3.2	113	370	816	1150	900	1400	G1¼
ULP-22AVS	22	30	13	189	48	2.9	102	370	816	1150	900	1400	G1¼
ULP-22AVS	22	30	16	232	33	2	71	370	816	1150	900	1400	G1¼
