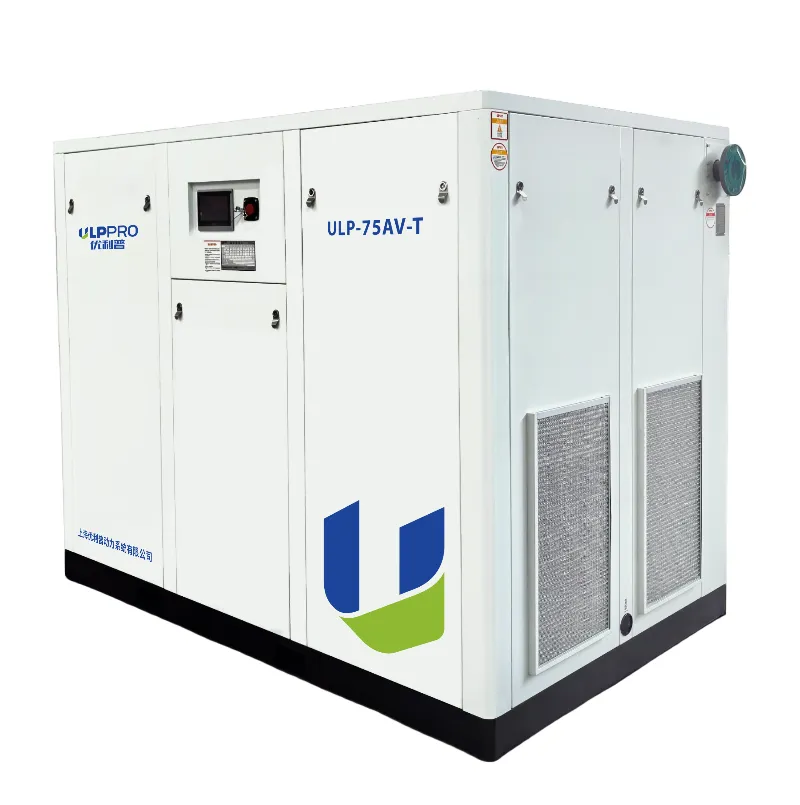

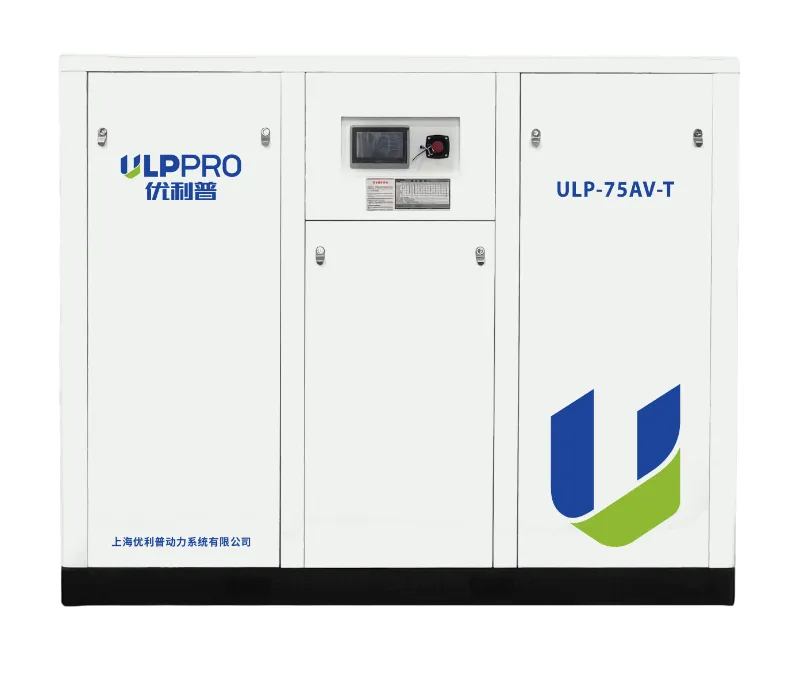

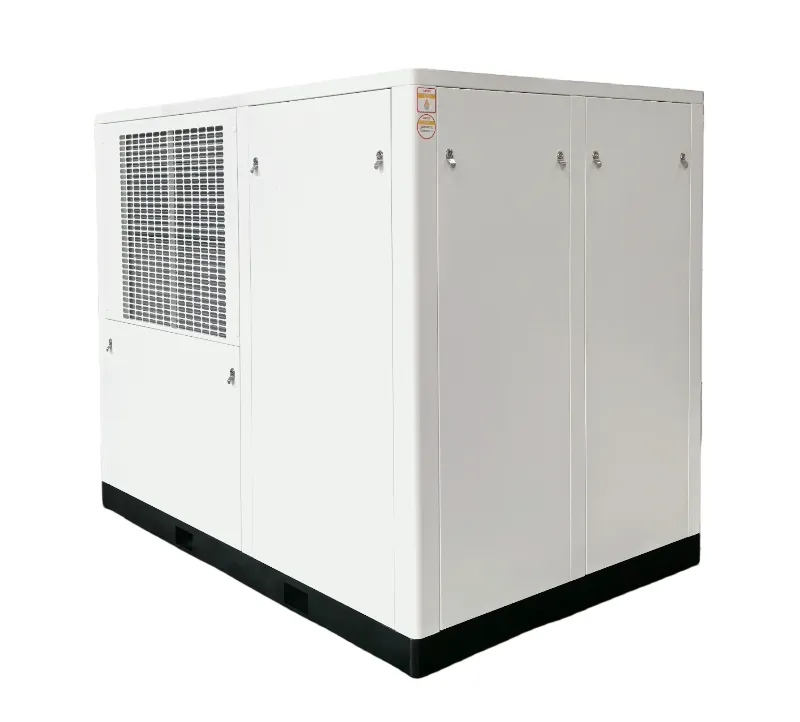

Two stage Compression Permanent Magnet Variable Frequency Screw Air Compressor

Two stage Compression Permanent Magnet Variable Frequency Screw Air Compressor, offered by ULPPRO adopts High-efficiency permanent magnet synchronous motor, special valve assembly, silent centrifugal fan, high-quality three-stage filter and high-quality and efficient coupling. The chassis features a multi-level noise reduction design. It is calculated base on acoustics principles. Special flame-retardant sound-absorbing cotton is applied inside to reduce the noise of the equipment and provide a quieter working environment.

Send Inquiry

Product Description

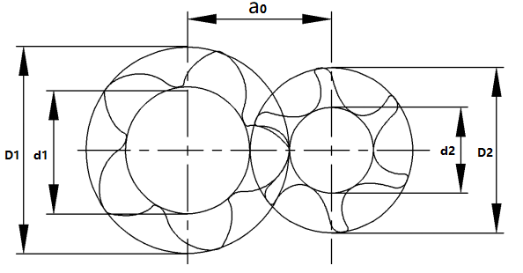

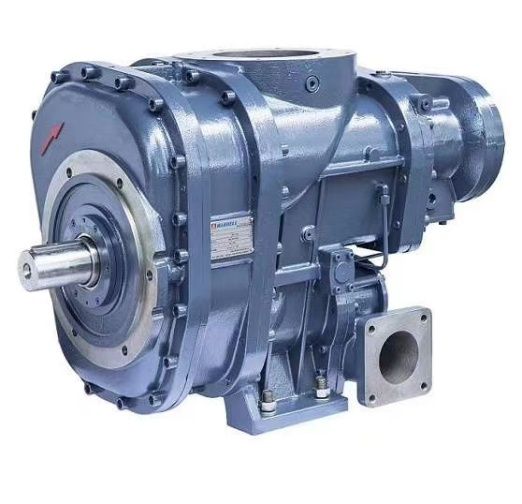

China manufactured ULPPRO Two stage Compression Permanent Magnet Variable Frequency Screw Air Compressor, adopts industry-leading dual-stage mainframe, with the unique intermediate cooling liquid spray curtain design reduces the temperature of the air, and the compression process approaches the most energy-efficient isothermal compression. In principle, the two-stage compression is 10%-15% more energy-efficient than the single-stage compression. Two-stage compression has a smaller compression ratio, less leakage, lower bearing load, and greatly increased bearing life. The design concept of "large rotor, large bearing, low speed" is adopted, which reduces noise and vibration, and increases the lifespan and stability of the main unit. The rotor tooth surface is processed by a grinding machine, creating a high-precision rotor, which is the first guarantee for the efficiency and stability of the main unit. A new asymmetric rotor tooth shape is adopted, and it is fully measured by a high-precision three-coordinate measuring machine, with excellent quality.

Two-stage Compression Energy-saving Case

Single-stage compression air compressor with 250KW capacity

Two-stage compression air compressor with 250KW capacity

The electricity cost for each hour of full-load operation is approximately RMB200

The annual electricity cost for 8000 hours of operation is approximately 1.6 million RMB

Using a two-stage compression air compressor

Can reduce power consumption by more than 10%

Using two-stage compression will save 160,000 RMB annually

Technical specification for Two stage Compression Permanent Magnet Variable Frequency Screw Air Compressor

Model	Power		Rated Pressure		Free Air Delivery			Weight		Dimension			Outlet size
	Power		Rated Pressure		Free Air Delivery			Weight		L	W	H	Outlet size
	kW	hp	bar	psig	l/s	m³/min	cfm	kg	lb	mm	mm	mm	inch/mm
ULP-22AV-T	22	30	7	102	77	4.6	162	370	816	1300	950	1150	G11/4
ULP-22AV-T	22	30	8	116	73	4.4	155	370	816	1300	950	1150	G11/4
ULP-22AV-T	22	30	10	145	58	3.5	124	370	816	1300	950	1150	G11/4
ULP-22AV-T	22	30	13	181	53	3.2	113	370	816	1300	950	1150	G11/4
ULP-30AV-T	30	45	7	102	105	6.3	222	750	1653	1600	1150	1400	G11/2
ULP-30AV-T	30	45	8	116	103	6.2	219	750	1653	1600	1150	1400	G11/2
ULP-30AV-T	30	45	10	145	92	5.5	194	750	1653	1600	1150	1400	G11/2
ULP-30AV-T	30	45	13	181	78	4.7	166	750	1653	1600	1150	1400	G11/2
ULP-37AV-T	37	50	7	102	125	7.5	265	800	1764	1600	1150	1400	G11/2
ULP-37AV-T	37	50	8	116	123	7.4	261	800	1764	1600	1150	1400	G11/2
ULP-37AV-T	37	50	10	145	113	6.8	240	800	1764	1600	1150	1400	G11/2
ULP-37AV-T	37	50	13	181	105	6.3	222	800	1764	1600	1150	1400	G11/2
ULP-45AV-T	45	60	7	102	157	9.4	332	1050	2315	1850	1200	1700	DN50
ULP-45AV-T	45	60	8	116	153	9.2	325	1050	2315	1850	1200	1700	DN50
ULP-45AV-T	45	60	10	145	128	7.7	272	1050	2315	1850	1200	1700	DN50
ULP-45AV-T	45	60	13	181	108	6.5	229	1050	2315	1850	1200	1700	DN50
ULP-55AV-T	55	75	7	102	205	12.3	434	1700	3748	2170	1300	1700	DN50
ULP-55AV-T	55	75	8	116	208	12.5	441	1700	3748	2170	1300	1700	DN50
ULP-55AV-T	55	75	10	145	175	10.5	371	1700	3748	2170	1300	1700	DN50
ULP-55AV-T	55	75	13	181	158	9.5	335	1700	3748	2170	1300	1700	DN50
ULP-75AV-T	75	100	7	102	260	15.6	551	2050	4519	2370	1500	1850	DN65
ULP-75AV-T	75	100	8	116	253	15.2	537	2050	4519	2370	1500	1850	DN65
ULP-75AV-T	75	100	10	145	217	13	459	2050	4519	2370	1500	1850	DN65
ULP-75AV-T	75	100	13	181	167	10	353	2050	4519	2370	1500	1850	DN65
ULP-90AV-T	90	125	7	102	342	20.5	724	2160	4762	2370	1500	1850	DN65
ULP-90AV-T	90	125	8	116	335	20.1	710	2160	4762	2370	1500	1850	DN65
ULP-90AV-T	90	125	10	145	288	17.3	611	2160	4762	2370	1500	1850	DN65
ULP-90AV-T	90	125	13	181	242	14.5	512	2160	4762	2370	1500	1850	DN65
ULP-110AV-T	110	150	7	102	400	24	847	2570	5666	2570	1700	1800	DN80
ULP-110AV-T	110	150	8	116	383	23	812	2570	5666	2570	1700	1800	DN80
ULP-110AV-T	110	150	10	145	328	19.7	695	2570	5666	2570	1700	1800	DN80
ULP-110AV-T	110	150	13	181	283	17	600	2570	5666	2570	1700	1800	DN80
ULP-132AV-T	132	175	7	102	500	30	1059	3530	7782	2970	1700	1900	DN80
ULP-132AV-T	132	175	8	116	467	28	988	3530	7782	2970	1700	1900	DN80
ULP-132AV-T	132	175	10	145	383	23	812	3530	7782	2970	1700	1900	DN80
ULP-132AV-T	132	175	13	181	333	20	706	3530	7782	2970	1700	1900	DN80
ULP-160AV-T	160	215	7	102	567	34	1200	3800	8377	2970	1700	1900	DN100
ULP-160AV-T	160	215	8	116	550	33	1165	3800	8377	2970	1700	1900	DN100
ULP-160AV-T	160	215	10	145	458	27.5	971	3800	8377	2970	1700	1900	DN100
ULP-160AV-T	160	215	13	181	375	22.5	794	3800	8377	2970	1700	1900	DN100
ULP-185AV-T	185	250	7	102	667	40	1412	5600	12346	3370	1950	2250	DN100
ULP-185AV-T	185	250	8	116	648	38.9	1373	5600	12346	3370	1950	2250	DN100
ULP-185AV-T	185	250	10	145	542	32.5	1147	5600	12346	3370	1950	2250	DN100
ULP-185AV-T	185	250	13	181	458	27.5	971	5600	12346	3370	1950	2250	DN100
ULP-200AV-T	200	270	7	102	730	43.8	1546	6100	13448	3370	1950	2250	DN100
ULP-200AV-T	200	270	8	116	708	42.5	1500	6100	13448	3370	1950	2250	DN100
ULP-200AV-T	200	270	10	145	617	37	1306	6100	13448	3370	1950	2250	DN100
ULP-200AV-T	200	270	13	181	533	32	1130	6100	13448	3370	1950	2250	DN100
ULP-220AV-T	220	300	7	102	808	48.5	1712	6400	14109	3770	2150	2250	DN100
ULP-220AV-T	220	300	8	116	797	47.8	1687	6400	14109	3770	2150	2250	DN100
ULP-220AV-T	220	300	10	145	683	41	1447	6400	14109	3770	2150	2250	DN100
ULP-220AV-T	220	300	13	181	597	35.8	1264	6400	14109	3770	2150	2250	DN100
ULP-250AV-T	250	340	7	102	900	54	1907	6800	14991	3770	2150	2250	DN125
ULP-250AV-T	250	340	8	116	858	53	1818	6800	14991	3770	2150	2250	DN125
ULP-250AV-T	250	340	10	145	692	41.5	1465	6800	14991	3770	2150	2250	DN125
ULP-250AV-T	250	340	13	181	658	39.5	1395	6800	14991	3770	2150	2250	DN125

Technical specification for Two stage Compression Fixed Speed Screw Air Compressor

Model	Power		Rated Pressure		Free Air Delivery			Weight		Dimension			Outlet size
	Power		Rated Pressure		Free Air Delivery			Weight		L	W	H	Outlet size
	kW	hp	bar	psig	l/s	m³/min	cfm	kg	lb	mm	mm	mm	inch/mm
ULP-22A-T	22	30	7	102	77	4.6	162	450	992	1300	950	1150	G1¼
ULP-22A-T	22	30	8	116	73	4.4	155	450	992	1300	950	1150	G1¼
ULP-22A-T	22	30	10	145	58	3.5	124	450	992	1300	950	1150	G1¼
ULP-22A-T	22	30	13	181	53	3.2	113	450	992	1300	950	1150	G1¼
ULP-30A-T	30	45	7	102	105	6.3	222	750	1653	1600	1150	1400	G1½
ULP-30A-T	30	45	8	116	103	6.2	219	750	1653	1600	1150	1400	G1½
ULP-30A-T	30	45	10	145	92	5.5	194	750	1653	1600	1150	1400	G1½
ULP-30A-T	30	45	13	181	78	4.7	166	750	1653	1600	1150	1400	G1½
ULP-37A-T	37	50	7	102	125	7.5	265	850	1874	1600	1150	1400	G1½
ULP-37A-T	37	50	8	116	123	7.4	261	850	1874	1600	1150	1400	G1½
ULP-37A-T	37	50	10	145	113	6.8	240	850	1874	1600	1150	1400	G1½
ULP-37A-T	37	50	13	181	105	6.3	222	850	1874	1600	1150	1400	G1½
ULP-45A-T	45	60	7	102	157	9.4	332	1150	2535	1850	1200	1700	DN50
ULP-45A-T	45	60	8	116	153	9.2	325	1150	2535	1850	1200	1700	DN50
ULP-45A-T	45	60	10	145	128	7.7	272	1150	2535	1850	1200	1700	DN50
ULP-45A-T	45	60	13	181	108	6.5	229	1150	2535	1850	1200	1700	DN50
ULP-55A-T	55	75	7	102	205	12.3	434	1750	3858	2150	1300	1700	DN50
ULP-55A-T	55	75	8	116	208	12.5	441	1750	3858	2150	1300	1700	DN50
ULP-55A-T	55	75	10	145	175	10.5	371	1750	3858	2150	1300	1700	DN50
ULP-55A-T	55	75	13	181	158	9.5	335	1750	3858	2150	1300	1700	DN50
ULP-75A-T	75	100	7	102	260	15.6	551	2160	4762	2370	1500	1850	DN65
ULP-75A-T	75	100	8	116	253	15.2	537	2160	4762	2370	1500	1850	DN65
ULP-75A-T	75	100	10	145	217	13	459	2160	4762	2370	1500	1850	DN65
ULP-75A-T	75	100	13	181	167	10	353	2160	4762	2370	1500	1850	DN65
ULP-90A-T	90	125	7	102	342	20.5	724	2250	4960	2370	1500	1850	DN65
ULP-90A-T	90	125	8	116	335	20.1	710	2250	4960	2370	1500	1850	DN65
ULP-90A-T	90	125	10	145	288	17.3	611	2250	4960	2370	1500	1850	DN65
ULP-90A-T	90	125	13	181	242	14.5	512	2250	4960	2370	1500	1850	DN65
ULP-110A-T	110	150	7	102	400	24	847	2770	6107	2570	1700	1800	DN80
ULP-110A-T	110	150	8	116	383	23	812	2770	6107	2570	1700	1800	DN80
ULP-110A-T	110	150	10	145	328	19.7	695	2770	6107	2570	1700	1800	DN80
ULP-110A-T	110	150	13	181	283	17	600	2770	6107	2570	1700	1800	DN80
ULP-132A-T	132	175	7	102	500	30	1059	2980	6570	2570	1700	1800	DN80
ULP-132A-T	132	175	8	116	467	28	988	2980	6570	2570	1700	1800	DN80
ULP-132A-T	132	175	10	145	383	23	812	2980	6570	2570	1700	1800	DN80
ULP-132A-T	132	175	13	181	333	20	706	2980	6570	2570	1700	1800	DN80
ULP-160A-T	160	215	7	102	567	34	1200	3900	8598	2970	1700	1900	DN100
ULP-160A-T	160	215	8	116	550	33	1165	3900	8598	2970	1700	1900	DN100
ULP-160A-T	160	215	10	145	458	27.5	971	3900	8598	2970	1700	1900	DN100
ULP-160A-T	160	215	13	181	375	22.5	794	3900	8598	2970	1700	1900	DN100
ULP-185A-T	185	250	7	102	667	40	1412	4800	10582	3370	1950	2250	DN100
ULP-185A-T	185	250	8	116	648	38.9	1373	4800	10582	3370	1950	2250	DN100
ULP-185A-T	185	250	10	145	542	32.5	1147	4800	10582	3370	1950	2250	DN100
ULP-185A-T	185	250	13	181	458	27.5	971	4800	10582	3370	1950	2250	DN100
ULP-200A-T	200	270	7	102	730	43.8	1546	5890	12985	3370	1950	2250	DN100
ULP-200A-T	200	270	8	116	708	42.5	1500	5890	12985	3370	1950	2250	DN100
ULP-200A-T	200	270	10	145	617	37	1306	5890	12985	3370	1950	2250	DN100
ULP-200A-T	200	270	13	181	533	32	1130	5890	12985	3370	1950	2250	DN100
ULP-220A-T	220	300	7	102	808	48.5	1712	6250	13779	3770	2150	2250	DN100
ULP-220A-T	220	300	8	116	797	47.8	1687	6250	13779	3770	2150	2250	DN100
ULP-220A-T	220	300	10	145	683	41	1447	6250	13779	3770	2150	2250	DN100
ULP-220A-T	220	300	13	181	597	35.8	1264	6250	13779	3770	2150	2250	DN100
ULP-250A-T	250	340	7	102	900	54	1906	6680	14727	3770	2150	2250	DN125
ULP-250A-T	250	340	8	116	884	53	1871	6680	14727	3770	2150	2250	DN125
ULP-250A-T	250	340	10	145	692	41.5	1465	6680	14727	3770	2150	2250	DN125
ULP-250A-T	250	340	13	181	658	39.5	1394	6680	14727	3770	2150	2250	DN125
