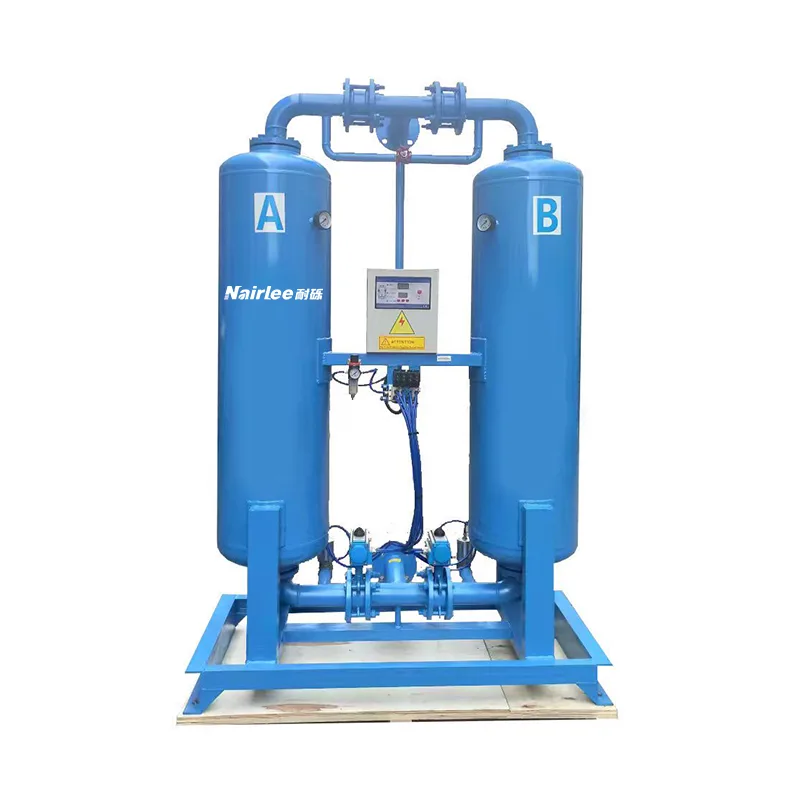

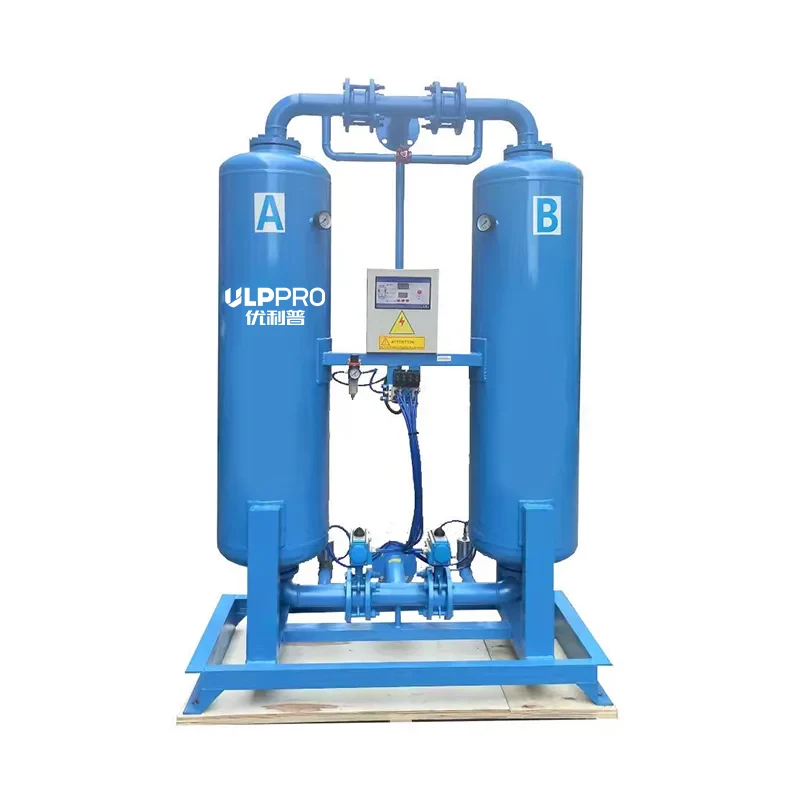

Heatless Adsorption Air Dryer

As a China Heatless Adsorption Air Dryer supplier, Yuzhen manufactures this dryer according to ISO9001, GB150 (pressure vessel standard), and ISO7183 refrigerated dryer standards. Every step from production to testing adheres strictly to these specifications.

Send Inquiry

Product Description

1. The internal structure of the tower is specially optimized: the compressed air enters at the perfect angle and contact time with the adsorbent.

2. The Heatless Adsorption Air Dryer uses high-purity alumina and molecular sieve as adsorbents. These are the most commonly used and efficient materials for drying compressed air. It employs a vacuum negative pressure filling method, resulting in a tighter and denser packing of adsorbent particles. This tight packing prevents powdering of the adsorbent during long-term high-pressure airflow impact and regeneration cycles, extending the adsorbent's lifespan.

Many customers have stated that the adsorbent can be used for several years without frequent replacement, which directly reduces maintenance costs and downtime.

3. This machine is equipped with an intelligent controller. When the machine is running, key data such as pressure and temperature can be displayed on the screen in real time, so you don't have to squat next to it and stare at it all the time. You can keep track of the machine's operating status at any time.

4. In terms of valves, we use high-performance pneumatic control valves, which are fast and stable when switching adsorption towers. The solenoid valve chosen is a standard low-pressure model, which is highly accurate, responsive, and can execute control commands precisely and quickly.

5. It also has a sound insulation and silencer. The Heatless Adsorption Air Dryer uses multi-layer fiber sound insulation material and a specially designed mechanical sound-absorbing structure, so the machine is very quiet when it is running.

item	Air handling capacity (Nm³/min)	Air connection Pipe diameter	External dimensions (mm)			Weight (kg)
item	Air handling capacity (Nm³/min)	Air connection Pipe diameter	Length	width	height	Weight (kg)
NL-1WXF	1.2	ZG1	910	420	1418	120
NL-2WXF	2.4	ZG1	910	420	1518	140
NL-3WXF	3.8	ZG1.5	1000	450	1890	220
NL-5WXF	5.5	ZG1.5	1000	450	1890	340
NL-6WXF	6.5	ZG1.5	1200	500	1960	380
NL-8WXF	8.5	ZG1.5	1200	500	1960	430
NL-10WXF	10.7	ZG2	1400	600	2100	520
NL-13WXF	13.5	ZG2	1400	600	2150	580
NL-15WXF	18	DN65	1400	600	2200	640
NL-20WXF	25	DN80	1670	650	2480	730
NL-30WXF	35	DN100	1576	672	2523	960
NL-40WXF	45	DN100	1688	722	2568	1150
NL-50WXF	55	DN125	1900	750	2800	1380
NL-60WXF	65	DN125	1900	750	3100	1600
NL-80WXF	85	DN150	2620	1120	3070	2580
NL-100WXF	110	DN150	3100	1650	3200	3800
NL-160WXF	160	DN200	3240	1770	3190	5200
