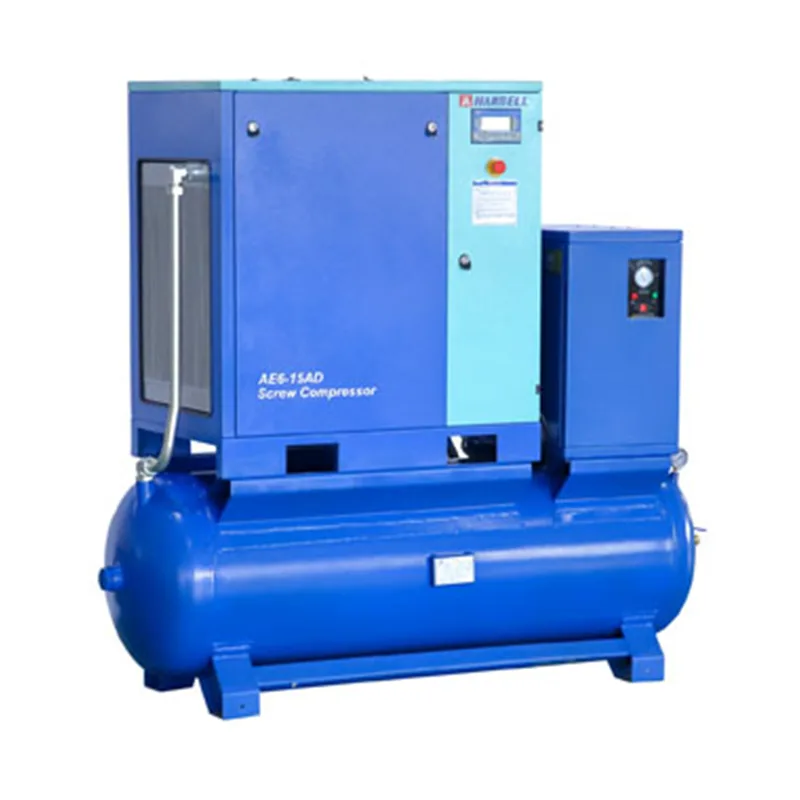

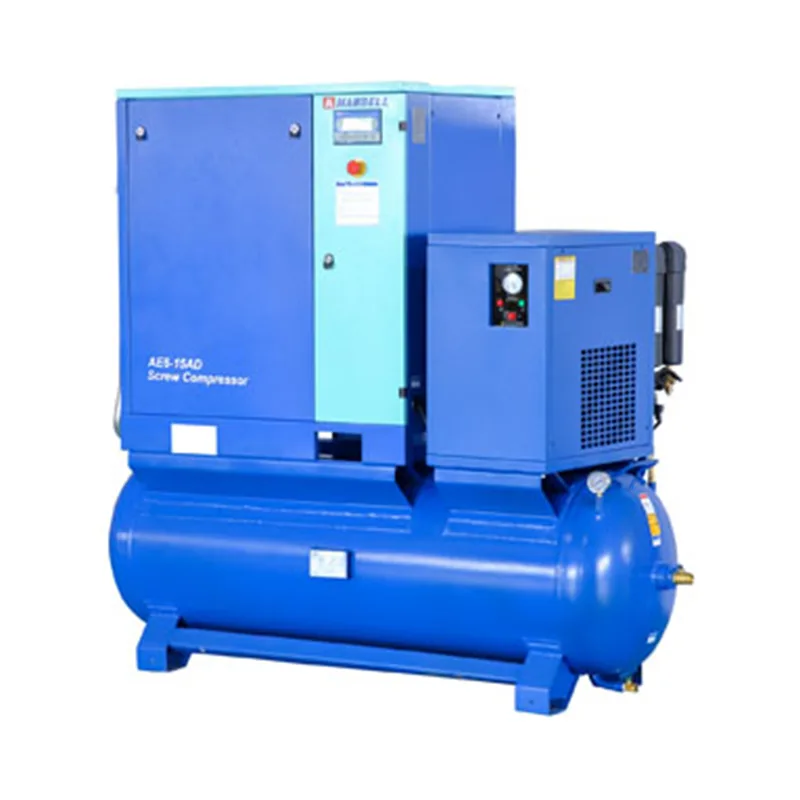

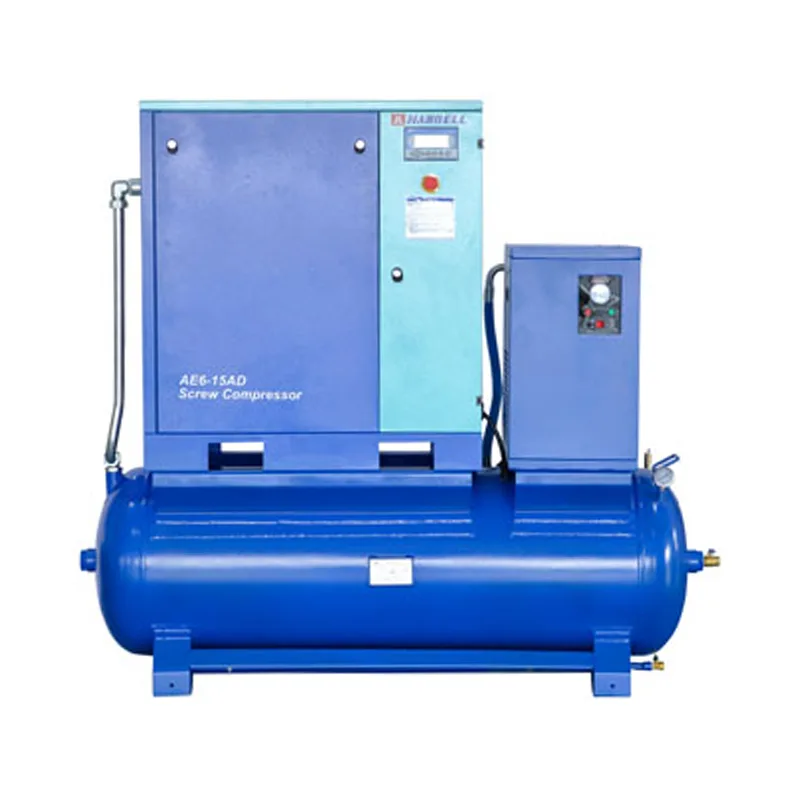

Integrated Variable Frequency Screw Air Compressor

As a professional supplier of integrated variable frequency screw air compressors in China, Yuzhen integrates air compressors, air dryers, air tanks, and high-efficiency precision filters into a single unit. This eliminates the need for additional piping installation, making it ready to use immediately and significantly reducing the costs of air compressor procurement, installation, and maintenance.

Send Inquiry

Product Description

1. Highly Integrated Unit: Integrates air compressor, refrigerated dryer, air tank, high-efficiency precision filter, and other functions into a single system. No piping installation is required, saving on piping installation and manpower for air compressor stations. It is ready to use immediately after installation.

2. Integrated Variable Frequency Screw Air Compressor Utilizes Hanbell's independently developed AB series single-stage compressor body, featuring belt drive and convenient pressure adjustment. Equipped with a high-efficiency brand motor, it boasts high efficiency and reliability.

3. The intake system uses a high-efficiency filter with cyclone separation and nano-coating precision filtration, achieving a filtration accuracy of 1µm.

4. Enlarged cooling system with a silent axial flow fan design, offering higher reliability and convenient maintenance.

5. Air piping uses PA nylon high-temperature tubing connections, and oil piping employs an O-ring + flat sealing structure design, effectively preventing pipeline vibration and leakage, and facilitating maintenance.

6. Extra-large oil-gas separation system with external oil separator and oil filter design, simplifying maintenance; equipped with a post-precision filter, achieving a filtration accuracy of 0.01µm.

7.The electrical control system uses brand-name electrical components, enabling remote real-time monitoring of the air compressor system. It can easily realize functions such as operation data query, fault warning, and historical information storage; optional cloud-based Hanzhong IoT can be equipped to fully grasp the operating status of the air compressor system and safeguard your air compressor system.

Integrated Variable Frequency Screw Air Compressor

Technical Parameter Table

Model	Motor Power	Discharge Pressure	Volume Flow Rate	Outlet Size	Unit Net Weight	Dimensions
(Model)	(kW)	(bar)	(m³/min)	(inch)	(kg)	(LWH)mm
AE6-04AT	3.7	8	0.4	Rc3/4	450	13656601680
AE6-04AD	3.7	8	0.4	Rc1	540	18758691745
AE6-06AT	5.5	8	0.7	Rc3/4	490	13656601680
		10	0.6
		13	0.4
AE6-06AD	5.5	8	0.7	Rc1	560	18758691745
		10	0.6
		13	0.4
AE6-08AT	7.5	8	1.1	Rc3/4	500	13656601680
		10	0.9
		13	0.6
		16	0.4
AE6-08AD	7.5	8	1.1	Rc1	580	187510151745
		10	0.9
		13	0.6
		16	0.4
AE6-11AT	11	8	1.6	Rc3/4	520	13656601680
		10	1.4
		13	1.1
		16	0.8
AE6-11AD	11	8	1.6	Rc1	600	187510151745
		10	1.4
		13	1.1
		16	0.8
AE6-15AT	15	8	2.4	Rc3/4	530	16207601780
		10	2.1
		13	1.7
		16	1.2
AE6-15AD	15	8	2.4	Rc1	620	208011151870
		10	2.1
		13	1.7
		16	1.2
AE6-18AT	18.5	8	3.0	Rc3/4	560	16207601780
		10	2.5
		13	2.2
		16	1.6
AE6-18AD	18.5	8	3.0	Rc1	650	208011151870
		10	2.5
		13	2.2
		16	1.6
